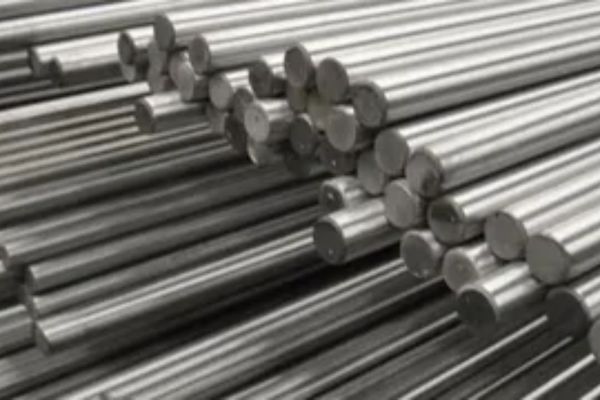

Bhavesh Steel is a leading manufacturer and supplier of high-quality alloy steel bars in Dubai, UAE, specializing strongly in Alloy Steel AISI 4340 Bars. Due to its dedication to quality, precision engineering, and customer satisfaction, Bhavesh Steel provides high-quality products that conform to international standards and varied industrial specifications. With cutting-edge manufacturing facilities and well-established distribution channels, the company delivers uniform supply throughout the UAE and surrounding markets. Supplying markets like aerospace, automotive, oil and gas, and heavy machinery equipment, Bhavesh Steel has established a strong reputation as the go-to supplier for alloy steel products.
AISI 4340 Alloy Steel is a low alloy steel that is famous for having a balanced nickel, chromium, and molybdenum composition. It normally contains around 0.40% carbon, 1.8% nickel, 0.8% chromium, and 0.25% molybdenum. The composition makes it stronger, tougher, and harder to harden. The material has remarkable mechanical properties such as tensile strength of 930 to 1080 MPa and yield strength of approximately 745 MPa. With high impact resistance and fair fatigue strength, it provides stable performance under stress. After heat treatment, AISI 4340 also demonstrates good machinability, enabling the production of complex and precision-crafted parts.
| Sizes | 2-100mm A/F |
|---|---|
| Tolerance | H9, H8, H10, K12, H13K9, K10, H11, H12, K11 |
| Round bar Sizes | Diameter: 3-~800mm |
| Technique | Hot Rolled, Cold Drawn, Cold Rolled, Forged, Rod |
| Processing | Bar cutting to 650mm |
| Surface | Bright, Hot Rolled Pickled, Sand Blasting Finished, Hairline, Cold Drawn, Polished suppliers |
| Condition | Hardened and tempered, annealed |
| Form | Precision Square, Ingot, T-Bar, Rod, Round, Welding Rod, I/H Bar, Flat Bar, Blocks, Rings, Rectangle, Hex (A/F), Hollow, Threaded, Profiles, Ground Bar, Channel Bar, Billet, Triangle, Round Rod, Half Round Bar, Forging etc. |

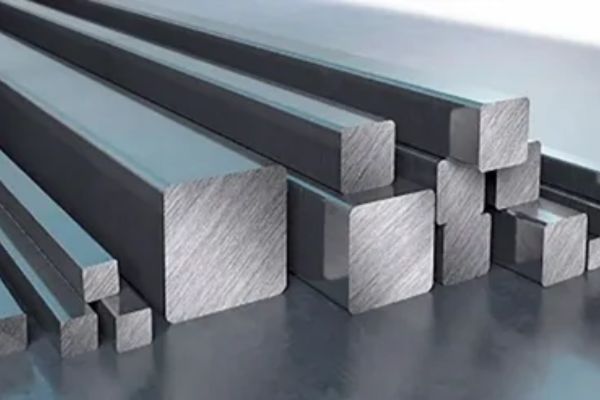

| Square bar Sizes | 4 to 100mm |
| Finish | Hot rolled annealed, Bright, smooth turned, Polish, Rough Turned, Cold (bright) drawn, centreless ground, Grinding, peeled, hot rolled, slit rolled edge, Centreless Ground & Black. |

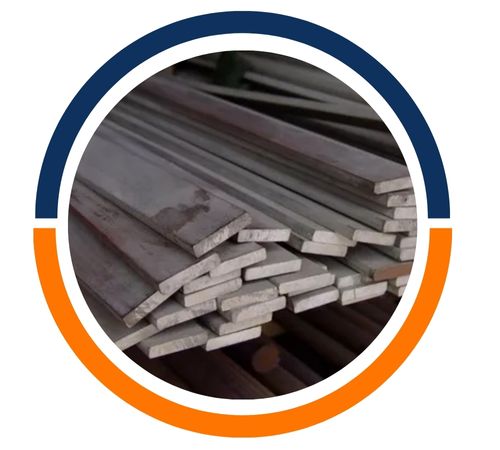

| Flat bar Sizes | Width: 10 – 500 millimeter Thick.: 2 to 100 millimeter |
| C | Mn | Si | S | P | Cr | Ni | Mo | |
| SAE – 4340 | .38- .43 | .60 – .80 | .15 – .35 | .035 MAX | .040 MAX | .70 – .90 | 1.65 -2.00 | .20 – .30 |
| Tensile strength kgf/mm² | Yield strength kgf/mm² | Elongation % | Cross section reduction rate % | Impact value | Hardness Hb |
|---|---|---|---|---|---|
| ≧100 | ≧90 | ≧16 | ≧45 | ≧7 | 293~352 |
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
| SIZE IN INCHES | ROUND | SQUARE | OCTAGON | HEXAGON | SIZE IN INCHES | ROUND | SQUARE | OCTAGON | HEXAGON |
| 1/16 | .010 | .013 | .011 | .012 | 11/16 | 1.262 | 1.607 | 1.333 | 1.392 |
| 5/64 | .017 | .022 | .018 | .019 | 45/64 | 1.320 | 1.681 | 1.394 | 1.456 |
| 3/32 | .023 | .029 | .024 | .025 | 23/32 | 1.380 | 1.756 | 1.487 | 1.521 |
| 7/64 | .031 | .039 | .033 | .034 | 47/64 | 1.440 | 1.834 | 1.521 | 1.588 |
| 1/8 | .042 | .053 | .044 | .046 | 3/4 | 1.502 | 1.913 | 1.586 | 1.656 |
| 9/64 | .053 | .067 | .056 | .058 | 25/32 | 1.630 | 2.075 | 1.721 | 1.797 |
| 5/32 | .065 | .083 | .069 | .072 | 13/16 | 1.763 | 2.245 | 1.862 | 1.944 |
| 11/64 | .079 | .100 | .083 | .087 | 27/32 | 1.901 | 2.421 | 2.008 | 2.096 |
| 3/16 | .094 | .120 | .099 | .104 | 7/8 | 2.045 | 2.603 | 2.159 | 2.254 |
| 13/64 | .110 | .140 | .116 | .121 | 29/32 | 2.193 | 2.792 | 2.316 | 2.418 |
| 7/32 | .128 | .163 | .135 | .141 | 15/16 | 2.347 | 2.988 | 2.479 | 2.588 |
| 15/64 | .147 | .187 | .155 | .162 | 31/32 | 2.506 | 3.191 | 2.646 | 2.763 |
| 1/4 | .167 | .213 | .176 | .184 | 1 | 2.670 | 3.400 | 2.820 | 2.945 |
|---|---|---|---|---|---|---|---|---|---|
| 17/64 | .188 | .240 | .199 | .207 | 1-1/16 | 3.015 | 3.838 | 3.183 | 3.324 |
| 9/32 | .211 | .269 | .223 | .233 | 1-1/8 | 3.380 | 4.303 | 3.569 | 3.727 |
| 19/64 | .235 | .300 | .248 | .259 | 1-3/16 | 3.766 | 4.795 | 3.977 | 4.152 |
| 5/16 | .261 | .332 | .275 | .288 | 1-1/4 | 4.172 | 5.313 | 4.407 | 4.601 |
| 21/64 | .288 | .360 | .304 | .318 | 1-5/16 | 4.600 | 5.857 | 4.858 | 5.072 |
| 11/32 | .316 | .402 | .334 | .348 | 1-3/8 | 5.049 | 6.428 | 5.332 | 5.567 |
| 23/64 | .345 | .439 | .364 | .381 | 1-7/16 | 5.518 | 7.026 | 5.827 | 6.085 |
| 3/8 | .376 | .478 | .397 | .414 | 1-1/2 | 6.008 | 7.650 | 6.345 | 6.625 |
| 25/64 | .408 | .519 | .431 | .450 | 1-9/16 | 6.519 | 8.301 | 6.885 | 7.189 |
| 13/32 | .441 | .561 | .466 | .486 | 1-5/8 | 7.051 | 8.978 | 7.446 | 7.775 |
| 27/64 | .475 | .605 | .502 | .524 | 1-11/16 | 7.604 | 9.682 | 8.030 | 8.385 |
| 7/16 | .511 | .651 | .540 | .564 | 1-3/4 | 8.178 | 10.41 | 8.634 | 9.018 |
| 29/64 | .548 | .698 | .579 | .604 | 1-13/16 | 8.773 | 11.17 | 9.265 | 9.673 |
| 15/32 | .587 | .747 | .620 | .647 | 1-7/8 | 9.388 | 11.95 | 9.911 | 10.35 |
| 31/64 | .627 | .798 | .662 | .692 | 1-15/16 | 10.02 | 12.76 | 10.58 | 11.05 |
| 1/2 | .668 | .850 | .705 | .736 | 2 | 10.68 | 13.60 | 11.28 | 11.78 |
| 33/64 | .710 | .904 | .750 | .783 | 2-1/16 | 11.36 | 14.46 | 11.99 | 12.53 |
| 17/32 | .754 | .960 | .796 | .831 | 2-1/8 | 12.06 | 15.35 | 12.73 | 13.30 |
| 35/64 | .799 | 1.017 | .844 | .881 | 2-3/16 | 12.78 | 16.27 | 13.49 | 14.09 |
| 9/16 | .845 | 1.076 | .892 | .932 | 2-1/4 | 13.52 | 17.21 | 14.27 | 14.91 |
| 37/64 | .893 | 1.136 | .943 | .985 | 2-5/16 | 14.28 | 18.18 | 15.08 | 15.75 |
| 19/32 | .941 | 1.199 | .994 | 1.038 | 2-3/8 | 15.06 | 19.18 | 15.91 | 16.61 |
| 39/64 | .992 | 1.263 | 1.048 | 1.094 | 2-7/16 | 15.87 | 20.20 | 16.75 | 17.49 |
| 5/8 | 1.043 | 1.328 | 1.102 | 1.150 | 2-1/2 | 16.69 | 21.25 | 17.62 | 18.40 |
| 41/64 | 1.096 | 1.395 | 1.207 | 1.209 | 2-9/16 | 17.53 | 22.33 | 18.52 | 19.34 |
| 21/32 | 1.150 | 1.464 | 1.214 | 1.268 | 2-5/8 | 18.40 | 23.43 | 19.43 | 20.29 |
| 43/64 | 1.205 | 1.535 | 1.272 | 1.329 | 2-11/16 | 19.29 | 24.56 | 20.37 | 21.27 |
Alloy Steel AISI 4340 Bars find extensive applications wherever there is a need for enhanced strength, toughness, and durability. They are widely utilized in the production of aircraft landing gears, drive shafts for automobiles, crankshafts, heavy-duty gears, and parts for oil and gas drilling rig machinery. The immense resistance of the alloy to wear and fatigue allows it to be used in defense and aerospace industries, where applications in harsh environments are mandatory. Moreover, AISI 4340 is utilized in machinery and construction equipment, promoting structural stability in harsh situations. Its versatility in a range of industries renders it a rich material for high-performance engineering applications.
