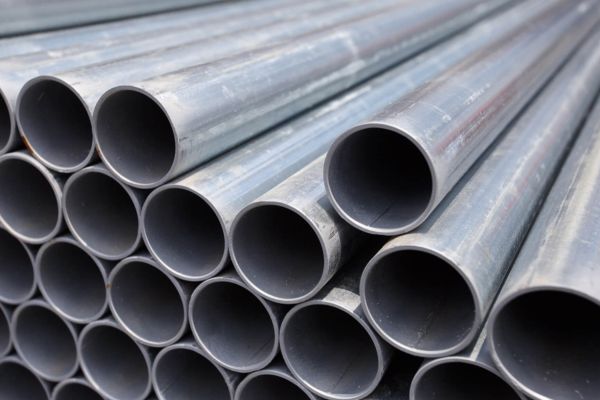

Bhavesh Steel is a Dubai, UAE-based leading manufacturer and supplier of superior quality Alloy Steel P91 Pipes. They are known for their precise engineering skills and strict manufacturing practices. Bhavesh Steel supplies pipes that are of the highest standard to meet the needs of the demanding industries. Their Alloy Steel P91 Pipes are designed to provide higher strength, durability, and resistance to high temperature as well as corrosion, thus suitable for applying in demanding industrial processes. With a strong focus on quality, timely delivery, and customer satisfaction, Bhavesh Steel caters to various industries such as oil & gas, power generation, and petrochemicals in Abu Dhabi and other parts of the UAE.
Alloy Steel P91 Pipes are mainly composed of 9% Chromium, 1% Molybdenum, and other components such as Carbon, Manganese, and Vanadium, which make it stronger and more heat-resistant. The pipes have superior mechanical properties such as high tensile strength, yield strength, and hardness. They also exhibit better creep strength at high temperatures up to 600°C, which makes them apt for high-temperature and high-pressure conditions. Chemical composition combined with heat treatment provides P91 pipes unbeatable toughness and longevity for sustained performance.

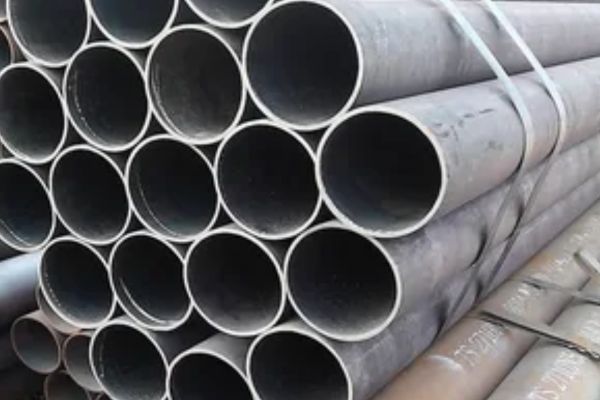

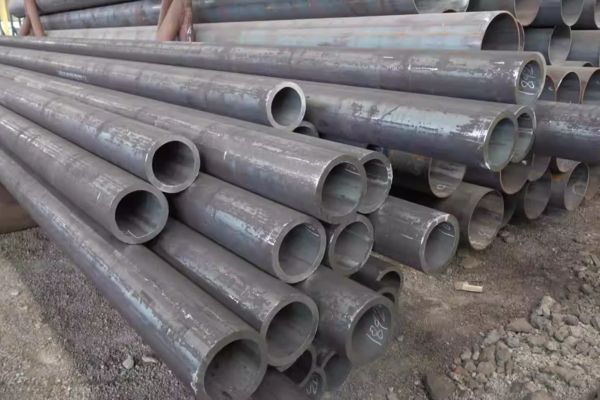

| Type | Seamless / ERW / Welded / Fabricated |
| Standard | ASTM A335 P91, SA335 P91 (with IBR Test Certificate) |
| Size | 1/2” NB to 36” NB |
| Length | Standard Double & In Cut length also. |
| Schedules | SCH 40, SCH 80, SCH 160, SCH XS, SCH XXS, All Schedules |
| Tolerance | Cold drawn pipe: +/-0.1mm
Cold rolled pipe: +/-0.05mm |
| Application | Seamless Ferritic Alloy-Steel Pipe for High-Temperature Service |
| End | Plain End, Beveled End, Treaded |
| Craft | Cold rolled and Cold drawn |

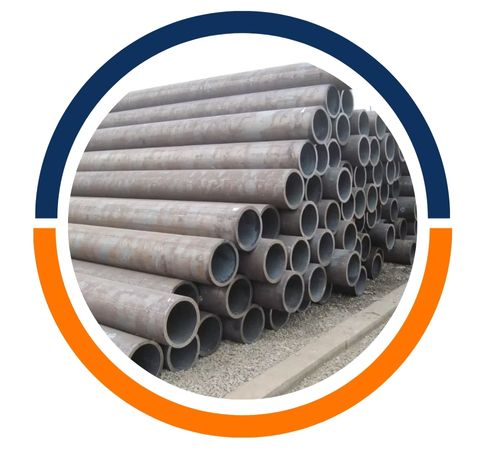

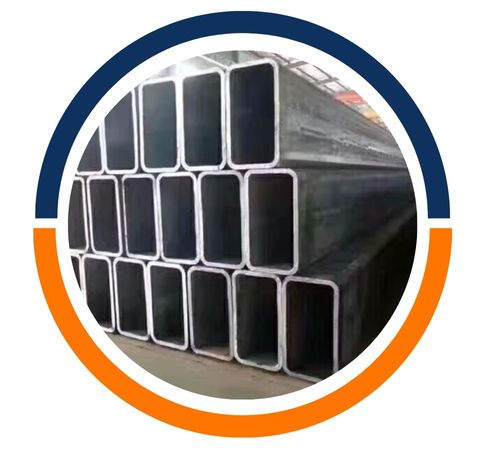

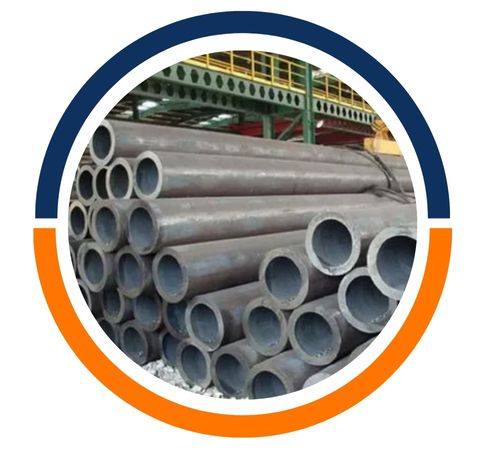

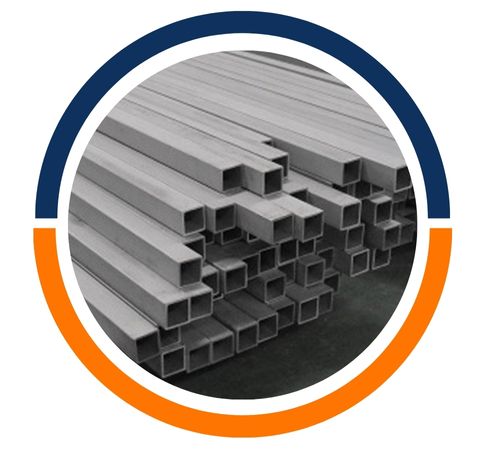

| available in Form of | Round, Square, Rectangular, Hydraulic Etc. |
| Origin | European, Japanese, Korean, US, Russian, Indian (Strictly No Chinese Material) |
| Specialized in | Large Diameter ASTM A335 P91 Pipe |
| Additional Testing | NACE MR 0175, NACE TM0177, NACE TM0284, HIC TEST, SSC TEST, H2 SERVICE, IBR, etc. |
| Thickness | 3-12mm |
| Alloy Steel P91 | C | Cr | Mn | Mo | P | S | Si |
| 0.08-0.12 | 8.00 – 9.50 | 0.30-0.60 | 0.85 – 1.05 | 0.020 max | 0.010 max | 0.20 -0.50 |
| Tensile Strength, MPa | Yield Strength, MPa | Elongation |
| 585 min | 415 min | 20 min |
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
Bhavesh Steel is a major manufacturer and a supplier of premium Alloy Steel P91 pipe in Dubai, the UAE. With specialization in steel solutions, we offer a variety of products including carbon steel, alloy steel, light steel and galvanized steel. Our wide bearing has pipes, pipes, flanges, pipe fittings, forged fittings, sheets and plates. We are famous for our reliable distribution and extraordinary customer service, and are committed to offering high quality steel materials that ensure durability and better performance in different industrial applications. We are committed to skill, and we are your reliable partners for all steel requirements.
| ASTM | ASME | Equivalent material | JIS G 3458 | UNS | BS | DIN | ISO | ABS | NK | LRS |
|---|---|---|---|---|---|---|---|---|---|---|
| A335 P91 | SA335 P91 | T91, K90901, X10CrMoVNb9-1, 1.4903 | K91560 |
| O.D.(mm) x Thickness(mm) | O.D(mm) x Thickness(mm) | O.D(mm) x Thickness(mm) |
|---|---|---|
| 38.1 x 3.2 | 57.0 x 4.9 | 76.2 x 4.0 |
| 38.1 x 4.0 | 57.0 x 6.3 | 76.2 x 5.0 |
| 38.1 x 6.3 | 57.0 x 7.9 | 76.2 x 6.3 |
| 42.4 x 3.2 | 60.3 x 3.2 | 82.5 x 4.5 |
| 42.4 x 4.0 | 60.3 x 3.6 | 88.9 x 3.2 |
| 44.5 x 3.2 | 60.3 x 5.0 | 88.9 x 3.6 |
| 44.5 x 6.3 | 63.5 x 3.2 | 88.9 x 4.0 |
| 48.3 x 3.2 | 63.5 x 3.6 | 101.6 x 3.6 |
| 48.3 x 3.6 | 63.5 x 4.0 | 101.6 x 4.5 |
| 50.8 x 4.5 | 63.5 x 6.3 | 101.6 x 6.3 |
| 51.0 x 3.2 | 63.5 x 7.9 | 114.3 x 3.6 |
| 51.0 x 3.6 | 70.0 x 3.2 | 114.3 x 5.0 |
| 51.0 x 6.3 | 70.0 x 3.6 | 139.7 x 4.0 |
| 57.0 x 3.2 | 70.0 x 6.3 | 139.7 x 5.0 |
| 57.0 x 3.6 | 76.2 x 3.6 | 139.7 x 6.3 |
| Size NPS | Pipe O.D. | Wall Thickness | Pipe I.D. | Weight per Foot | Standard to XXHY | Schedule Pipe # | Section Modulus | Gallon Capacity Per Linear Foot |
| 1/2 | 0.84 | 0.109 | 0.622 | 0.85 | STD | 40 | .0407 | .0158 |
| 0.147 | 0.546 | 1.09 | XHY | 80 | .0478 | .0122 | ||
| 0.188 | 0.464 | 1.31 | 160 | .0528 | .0088 | |||
| 0.294 | 0.252 | 1.72 | XXHY | .0577 | .0026 | |||
| 3/4 | 1.05 | 0.113 | 0.824 | 1.13 | STD | 40 | .0705 | .0277 |
| 0.154 | 0.742 | 1.48 | XHY | 80 | .0853 | .0225 | ||
| 0.219 | 0.612 | 1.95 | 160 | .1006 | .0153 | |||
| 0.308 | 0.434 | 2.44 | XXHY | .1103 | .0077 | |||
| 1 | 1.315 | 0.133 | 1.049 | 1.68 | STD | 40 | .1328 | .0449 |
| 0.179 | 0.957 | 2.17 | XHY | 80 | .1606 | .0374 | ||
| 0.250 | 0.815 | 2.85 | 160 | .1904 | .0271 | |||
| 0.358 | 0.599 | 3.66 | XXHY | .2136 | .0146 | |||
| 1 1/4 | 1.66 | 0.140 | 1.380 | 2.27 | STD | 40 | .2346 | .0777 |
| 0.191 | 1.278 | 3.00 | XHY | 80 | .2913 | .0666 | ||
| 0.250 | 1.160 | 3.77 | 160 | .3421 | .0549 | |||
| 0.382 | 0.896 | 5.22 | .4110 | .0328 | ||||
| 1 1/2 | 1.90 | 0.145 | 1.610 | 2.72 | STD | 40 | .3262 | .1058 |
| 0.200 | 1.500 | 3.63 | XHY | 80 | .4118 | .0918 | ||
| 0.281 | 1.338 | 4.86 | 160 | .5079 | .0730 | |||
| 0.400 | 1.100 | 6.41 | .5977 | .0494 | ||||
| 2 | 2.375 | 0.109 | 2.157 | 2.64 | 10 | .4205 | .1898 | |
| 0.154 | 2.067 | 3.66 | STD | 40 | .5606 | .1743 | ||
| 0.218 | 1.939 | 5.03 | XHY | 80 | .7309 | .1534 | ||
| 0.250 | 1.875 | 5.68 | .8045 | .1434 | ||||
| 0.281 | 1.813 | 6.29 | .8666 | .1344 | ||||
| 0.344 | 1.687 | 7.47 | 160 | .9806 | .1161 | |||
| 0.436 | 1.503 | 9.04 | XXHY | 1.1043 | .0922 | |||
| 2 1/2 | 2.875 | 0.120 | 2.635 | 3.53 | 10 | .6870 | .2833 | |
| 0.203 | 2.469 | 5.80 | STD. | 40 | 1.0640 | .2487 | ||
| 0.216 | 2.443 | 6.14 | 1.1169 | .2435 | ||||
| 0.250 | 2.375 | 7.02 | 1.2468 | .2301 | ||||
| 0.276 | 2.323 | 7.67 | XHY | 80 | 1.3386 | .2202 | ||
| 0.375 | 2.125 | 10.02 | 160 | 1.6371 | .1842 | |||
| 0.552 | 1.771 | 13.71 | XXXHY | 1.9971 | .1280 | |||
| 3 | 3.50 | 0.120 | 3.260 | 4.34 | 1.0411 | .4336 | ||
| 0.156 | 3.188 | 5.58 | 1.3122 | .4147 | ||||
| 0.172 | 3.156 | 6.12 | 1.4265 | .4064 | ||||
| 0.188 | 3.124 | 6.66 | 1.5342 | .3984 | ||||
| 0.216 | 3.068 | 7.58 | STD. | 40 | 1.7241 | .3840 | ||
| 0.250 | 3.000 | 8.69 | 1.9372 | .3672 | ||||
| 0.281 | 2.938 | 9.67 | 2.1207 | .3521 | ||||
| 0.300 | 2.900 | 10.26 | XHY | 80 | 2.2253 | .3431 | ||
| 0.438 | 2.624 | 14.34 | 160 | 2.8774 | .2811 | |||
| 0.600 | 2.300 | 18.6 | XXHY | 3.4243 | .2158 | |||
| 3 1/2 | 4.0 | 0.120 | 3.760 | 4.98 | 10 | 1.3776 | .5768 | |
| 0.226 | 3.548 | 9.12 | STD. | 140 | 2.3939 | .5136 | ||
| 0.250 | 3.500 | 10.02 | 2.6001 | .4998 | ||||
| 0.281 | 3.438 | 11.17 | 2.8562 | .4821 | ||||
| 0.318 | 3.364 | 12.52 | XHY | 80 | 3.1400 | .4617 | ||
| 0.636 | 2..728 | 22.87 | XXHY | 4.8795 | .3085 | |||
| 4 | 4.5 | 0.120 | 4.260 | 5.62 | 10 | 1.7612 | .7404 | |
| 0.156 | 4.188 | 7.24 | 2.2354 | .7156 | ||||
| 0.188 | 4.124 | 8.67 | 2.6296 | .6942 | ||||
| 0.203 | 4.094 | 9.32 | 2.8173 | .6838 | ||||
| 0.219 | 4.062 | 10.02 | 3.0184 | .6725 | ||||
| 0.237 | 4.026 | 10.80 | STD. | 40 | 3.2145 | .6613 | ||
| 0.250 | 4.000 | 11.36 | 3.3611 | .6528 | ||||
| 0.281 | 3.938 | 12.67 | 60 | 3.7021 | .6326 | |||
| 0.312 | 3.876 | 13.97 | 4.0273 | .6126 | ||||
| 0.337 | 3.826 | 15.00 | XHY | 80 | 4.2713 | .5972 | ||
| 0.438 | 3.624 | 19.02 | 120 | 5.1790 | .5361 | |||
| 0.531 | 3.438 | 22.53 | 160 | 5.8997 | .4822 | |||
| 0.674 | 3.152 | 27.57 | XXHY | 6.7927 | .4054 | |||
| 5 | 5.563 | 0.188 | 5.187 | 10.80 | 4.1161 | 1.0979 | ||
| 0.219 | 5.125 | 12.51 | 4.7279 | 1.0716 | ||||
| 0.258 | 5.047 | 14.63 | STD. | 40 | 5.4500 | 1.0391 | ||
| 0.281 | 5.001 | 15.87 | 5.8644 | 1.0204 | ||||
| 0.312 | 4.939 | 17.51 | 6.4074 | .99647 | ||||
| 0.344 | 4.875 | 19.19 | 6.9358 | .9696 | ||||
| 0.375 | 4.813 | 20.80 | XHY | 80 | 7.4300 | .9449 | ||
| 0.500 | 4.563 | 27.06 | 120 | 9.2534 | .8495 | |||
| 0.625 | 4.313 | 32.99 | 160 | 10.7976 | .7590 | |||
| 0.750 | 4.063 | 38.59 | XXHY | 12.0954 | .6734 | |||
| 6 | 6.625 | 0.109 | 6.407 | 7.59 | 5 | 3.5769 | 1.6748 | |
| 0.134 | 6.357 | 9.30 | 10 | 4.3475 | 1.6488 | |||
| 0.156 | 6.313 | 10.79 | 5.0107 | 1.6260 | ||||
| 0.188 | 6.249 | 12.94 | 5.9351 | 1.5937 | ||||
| 0.203 | 6.219 | 13.94 | 6.3804 | 1.5780 | ||||
| 0.219 | 6.187 | 15.00 | 6.8261 | 1.5620 | ||||
| 0.250 | 6.125 | 17.04 | 7.6905 | 1.5306 | ||||
| 0.280 | 6.065 | 18.99 | STD. | 40 | 8.4958 | 1.5008 | ||
| 0.312 | 6.001 | 21.06 | 9.3416 | 1.4688 | ||||
| 0.344 | 5.937 | 23.10 | 10.111 | 1.4391 | ||||
| 0.375 | 5.875 | 25.05 | 10.893 | 1.4082 | ||||
| 0.432 | 5.761 | 28.60 | XHY | 80 | 12.224 | 1.3541 | ||
| 0.500 | 5.625 | 32.74 | 13.711 | 1.2909 | ||||
| 0.562 | 5.501 | 36.43 | 120 | 14.9806 | 1.2346 | |||
| 0.625 | 5.375 | 40.09 | 16.1821 | 1.1787 | ||||
| 0.719 | 5.187 | 45.39 | 160 | 17.8243 | 1.0977 | |||
| 0.864 | 4.897 | 53.21 | XXHY | 20.025 | .9784 | |||
| 1.000 | 4.625 | 60.13 | 21.7719 | .8727 | ||||
| 1.125 | 4.375 | 66.14 | 23.1237 | .7809 |
Alloy Steel P91 Pipes are found in applications where high strength and resistance to heat are needed. They are particularly suited for power plants, particularly in steam boilers, superheaters, and heat exchangers, where very high temperatures and pressures prevail. Moreover, these pipes have widespread use in the oil and gas sector to carry hydrocarbons and in petrochemical refineries to process corrosive liquids. Their thermal fatigue and oxidation resistance properties make them critical to producing components in refineries, chemical plants, and other heavy industrial environments requiring proven performance.
Bhavesh Steel is a leading manufacturer, supplier and exporter of high-quality Carbon Steel, Alloy Steel, Mild Steel and Galvanized Steel products. Our extensive product range includes Pipes, Tubes, Flanges, Pipe Fittings, Forged Fittings, Sheets and Plates, catering to various industries in Dubai, UAE.
