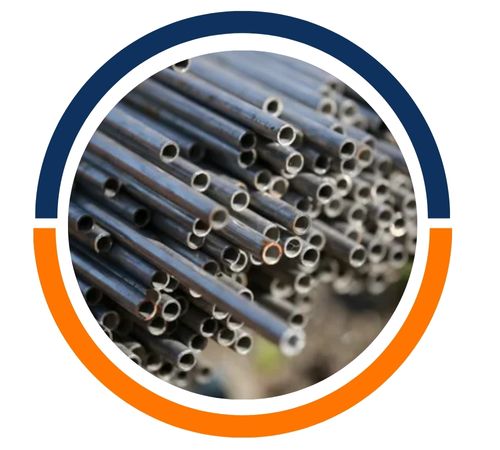

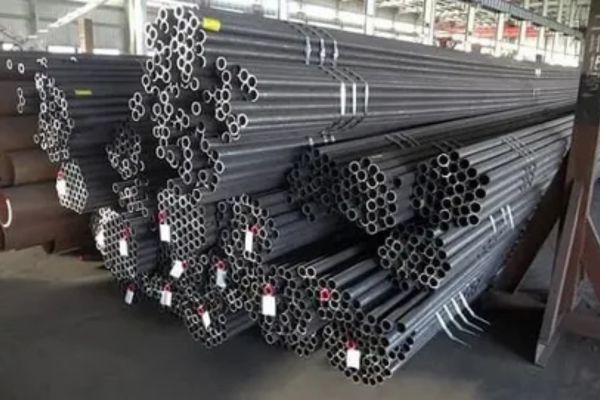

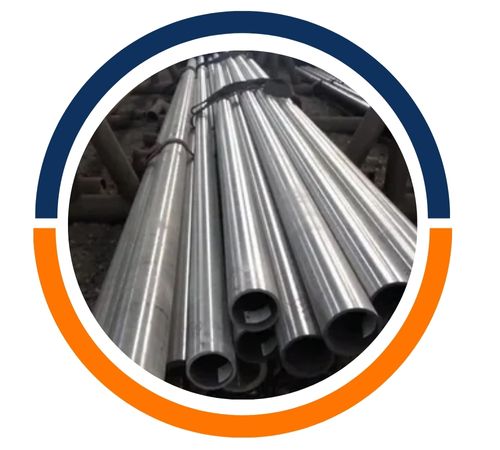

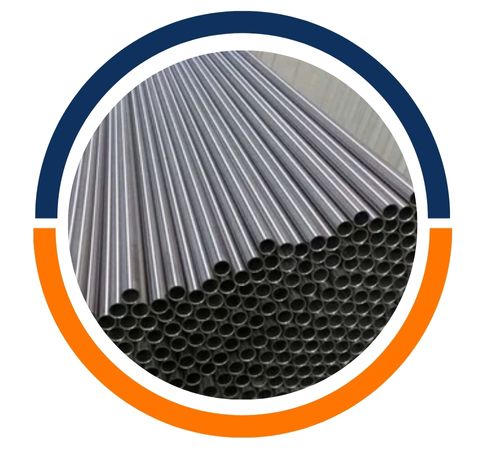

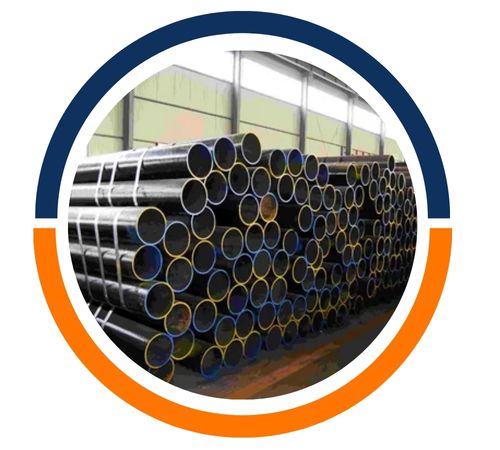

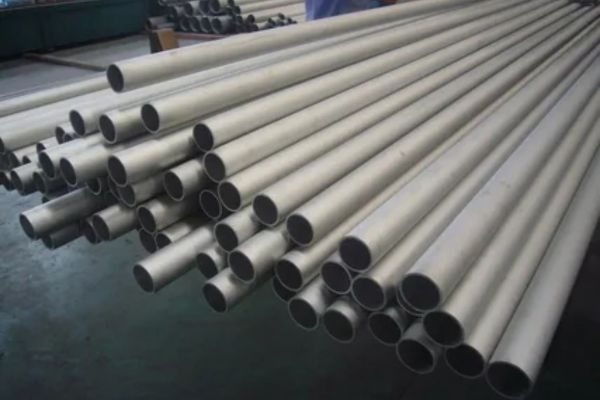

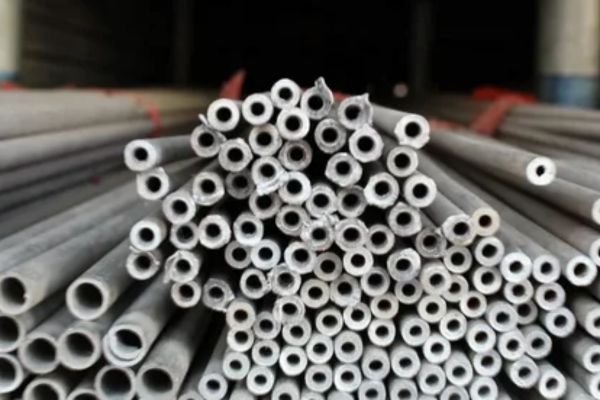

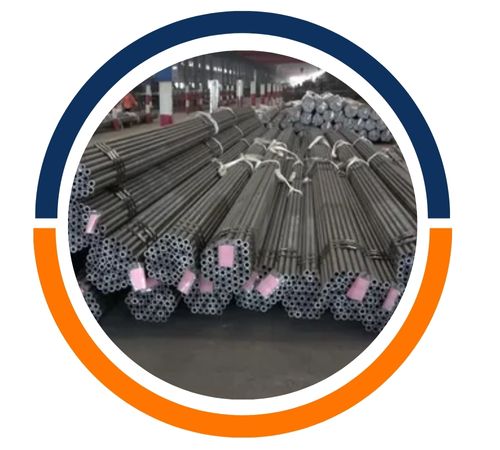

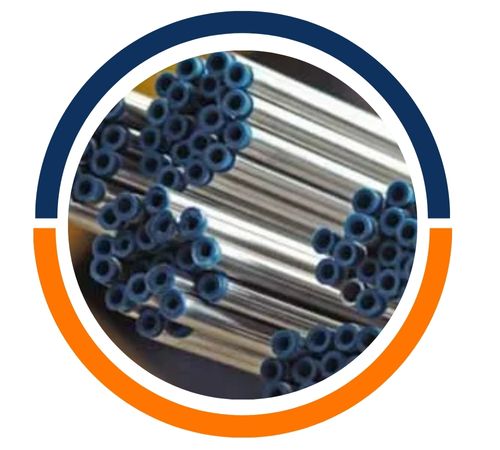

Bhavesh Steel is a prominent Dubai, UAE-based manufacturer and supplier of high-quality Alloy Steel T91 Tubing. Bhavesh Steel is renowned for providing high-quality and technically engineered products with timely delivery and reasonable prices. Our Alloy Steel T91 Tubing is designed with state-of-the-art technology and strict quality checks, which guarantee longevity and high performance. Relied upon by business houses in the Middle East, Bhavesh Steel strives for excellence and customer satisfaction, hence becoming the favored destination for top-grade alloy steel tubing solutions in the region.
Alloy Steel T91 Tubing is mainly comprised of chromium (8-9.5%), molybdenum (0.85-1.05%), and carbon (0.08-0.12%), with minute amounts of manganese, silicon, and vanadium. This chemical composition gives T91 tubing high strength, superior oxidation resistance, and improved creep rupture strength. Mechanically, T91 tubing has exceptional tensile strength (minimum 585 MPa) and yield strength (minimum 415 MPa), along with acceptable hardness and toughness. These characteristics make it suitable for applications under high temperature where it needs to withstand thermal fatigue and pressure.
| ASTM A213 T91 Specification & Standard | ASTM A213 T91, ASME SA213 T91 (with IBR Test Certificate) |
|---|---|
| SA 213 Gr T91 Specification | ASTM A213 & ASTM A209 BS/3059/ 90/ Part II/ 620 & 622 DIN/ 17175/ 13CrMo44 DIN/ 17175/ 10CrMo910 DIN/ 17175/ 15Mo3 |
| T91 Steel Tube Sch. & Swg. | 10 Swg., 12 Swg., 14 Swg., 16 Swg., 18 Swg., 20 Swg., 3.6 mm Thk |
| ASTM A213 T91 Tubing Size | 6.35 mm OD to 101.6 mm OD |
| ASTM A213 T91 Pipe Thickness | 3-12mm |
| ASME SA213 Gr T91 Material Origin | European, Japanese, Korean, US, Russian, Indian (Strictly No Chinese Material) |
| Craft | Cold rolled and Cold drawn |
| ASTM A213 T91 Tube Type | Seamless / ERW / Welded / Fabricated |
| SA213 T91 Steel Tube available in Form of | Round, Square, Rectangular, Hydraulic Etc. |
| ASTM SA213 T91 Tube Tolerance | Cold drawn pipe: +/-0.1mm Cold rolled pipe: +/-0.05mm |
| ASME SA213 Grade T91 Tube Length | Standard Double & In Cut length also. |
| ASME SA213 Gr T91 Tube End | Plain End, Beveled End, Treaded |
| ASTM A213 T91 Additional Testing | NACE MR 0175, NACE TM0177, NACE TM0284, HIC TEST, SSC TEST, H2 SERVICE, IBR, etc. |
| Specialized in |
|
| ASME SA213 Grade T91 Tube Application & uses | Seamless Ferritic ASTM A213 T91 Tubing for High-Temperature Service |
| Grade | C≤ | Mn | P≤ | S≤ | Si≤ | Mo |
|---|---|---|---|---|---|---|
| SA213 T91 Composition |
0.07~0.14 |
0.30~0.60 |
0.02 |
0.02 |
0.20~0.50 |
0.85~1.05 |
| Grade | Tensile Strength, MPa | Yield Strength, MPa | Elongation, % | Hardness, HB |
|---|---|---|---|---|
| ASTM A213 T91 Tubing | 585 min | 415 min | 20 min | 250 max |
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
| Outside Diameter | OD Tolerance | WT Tolerance | Ovality Tolerance | Cut Length Tolerance |
| OD≤ 12, 7 mm | ± 0, 13 mm | ± 15 % | – | + 3, 18 mm, – 0 mm |
| 12, 7 mm < OD ≤ 38, 1 mm | ± 0, 13 mm | ± 10 % | max, 1, 65 mm | + 3, 18 mm, – 0 mm |
| 38, 1 mm < OD ≤ 88, 9 mm | ± 0, 25 mm | ± 10 % | max, 2, 41 mm | + 4, 76 mm, – 0 mm |
Jaxon Steel is a leading manufacturer and distributor of high-quality Alloy Steel T91 Tubing in Dubai, UAE. We provide top-grade steel materials and a diverse range of products, including Alloy Steel, Carbon Steel, Mild Steel, and Galvanized Steel. Our comprehensive inventory features Tubes, Pipes, Flanges, Pipe Fittings, Forged Fittings, Sheets, and Plates. Dedicated to on-time delivery and outstanding customer service, we source only the best raw materials to guarantee superior performance in industrial applications with demanding specifications. Reach out to us today for all your Alloy Steel T91 Tubing requirements!
Alloy Steel T91 Tubing has extensive application in power generation facilities, petrochemical operations, and oil and gas industries because of its resistance to high temperature and corrosive conditions. It is largely utilized in heat exchangers, boilers, and superheater tubes where thermal stress durability becomes vital. T91 tubing also finds application in the construction of pressure vessels and piping systems of fossil fuel plants, chemical reactors, and refineries. Its superior mechanical characteristics and oxidational resistance provide consistent performance in challenging industrial applications.
Bhavesh Steel is a leading manufacturer, supplier and exporter of high-quality Carbon Steel, Alloy Steel, Mild Steel and Galvanized Steel products. Our extensive product range includes Pipes, Tubes, Flanges, Pipe Fittings, Forged Fittings, Sheets and Plates, catering to various industries in Dubai, UAE.
