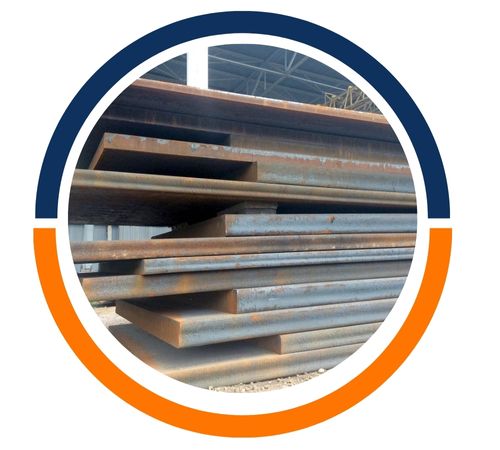

Bhavesh Steel is a well-known Dubai, UAE-based manufacturer and supplier of high-quality ARCELOR 400 Sheets and Plates. Acknowledged for providing world-class steel products, the company supplies precision-engineered materials that satisfy international standards to cater to a wide range of industries. Bhavesh Steel has established itself as a reliable company with prompt service and customer-oriented solutions, providing services to customers throughout the UAE and worldwide. Their ARCELOR 400 products stand out for their hardness, toughness, and reliability of performance, and they are a go-to source for customers in building, mining, heavy equipment, and industrial engineering applications.
ARCELOR 400 Sheets and Plates consist of high-strength wear-resistant steel with carbon, manganese, chromium, and other alloying constituents to increase hardness and strength. These plates have a Brinell Hardness Number (BHN) of approximately 400 and are known for their superior wear and impact resistance. Though hard, they are weldable and formable, making fabrication easy. Their mechanical properties consist of high tensile strength and toughness, and ARCELOR 400 is ideal for demanding industrial applications where mechanical stress and abrasion are major issues.
Item: ARCELOR 400
Thickness : 5mm to 150mm
Length : 6,000mm to 12,000mm
Width : 1,500mm to 2,500mm
Heat Treatment: N, Q+T
Surface Point : EP, PE, HDP, SMP, PVDF
| Internal grade | Thk (mm) | %C Max | %Mn Max | %P Max | %S Max | %SI Max | %Cr Max | %Ni Max | %Mo Max | B Max | CE Max |
| SRDQH40 | Up to 20 | 0.16 | 1.60 | 0.025 | 0.010 | 0.70 | 0.50 | 0.25 | 0.25 | 40 ppm | 0.45 |
| SRDQH41 | 20.1 – 32.0 | 0.18 | 1.60 | 0.025 | 0.010 | 0.70 | 1.00 | 0.25 | 0.25 | 40 ppm | 0.48 |
| SRDQH42 | 32.1 – 50.0 | 0.22 | 1.60 | 0.025 | 0.010 | 0.70 | 1.40 | 0.50 | 0.60 | 40 ppm | 0.57 |
| SRDQH43 | 50.1 – 70.0 | 0.22 | 1.60 | 0.025 | 0.010 | 0.70 | 1.40 | 0.50 | 0.60 | 40 ppm | 0.65 |
| HARDNESS (BHN) | YS (MPa) | UTS (MPa) | %El (L0=50 mm) | Impact at -30°C (In Joules) | |
| Specified values | 370 – 430 | 900Min | 1100 | 10 | 30J Min (Longitudinal to rolling) |
| Typical indicative values for 20 mm | 390 – 410 | 1050 | 1240 | 12 | 40J |
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
| 1/8″ | 3/8″ | 3/4″ | 1-1/2″ | 3″ |
| 3/16″ | 1/2″ | 1″ | 2″ | 4″ |
| 1/4″ | 5/8″ | 1-1/4″ | 2-1/2″ | Â |
| *1/8″ thick plate is available in one size only 60″x 120″. The 3/6″ thick plate is available only as 48″ x 144″ and 96″ x 144″. | ||||
| Thickness | Width | Length |
| 4 | 2000 | 6000 |
| 5 | 2000 | 6000 |
| 6 | 2000 | 6000 |
| 6 | 2500 | 6000 |
| 8 | 2000 | 6000 |
| 8 | 2500 | 6000 |
| 10 | 2000 | 6000 |
| 12 | 2000 | 6000 |
| 15 | 2000 | 6000 |
| 16 | 2000 | 6000 |
| 20 | 2000 | 6000 |
| 25 | 2000 | 6000 |
| 32 | 2000 | 6000 |
| 40 | 2000 | 6000 |
| 50 | 2000 | 6000 |
| 60 | 1800 | 3400 |
