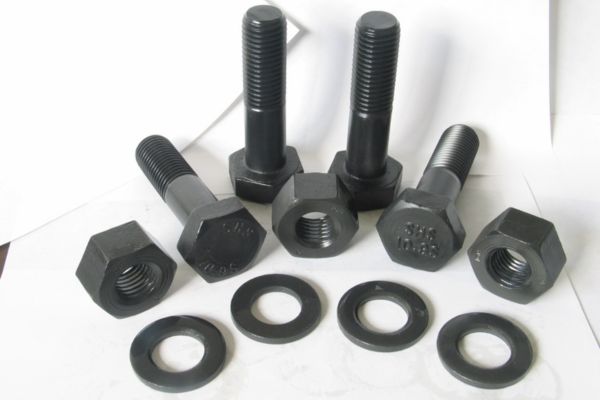

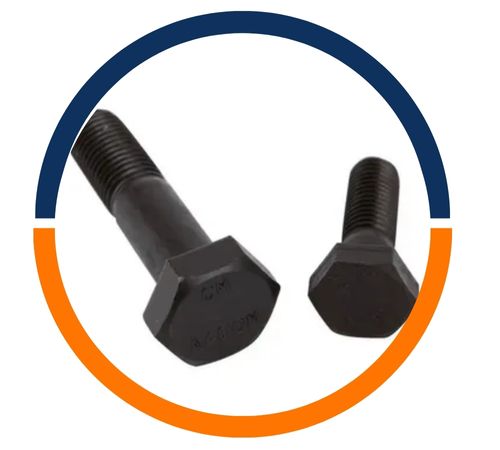

Bhavesh Steel is a top manufacturer and supplier of premium Carbon Steel 10.9 Fasteners in Dubai, UAE. We are known for our excellence and provide precision-made fasteners that are up to international standards and fit various industrial applications. Our large inventory, affordable prices, and customer-oriented services enable us to be a reliable partner to customers within the Middle East region as well as beyond. With years of experience in steel, Bhavesh Steel delivers dependable performance, corrosion resistance, and ruggedness in each product. For construction, automotive, or heavy machinery, our Carbon Steel 10.9 Fasteners provide unmatched strength and reliability
Carbon Steel 10.9 Fasteners consist mainly of carbon, while other elements like manganese, phosphorus, and sulfur help strengthen them and add toughness. These fasteners fall under ISO property class 10.9, representing a tensile strength of about 1040 MPa and yield strength of 940 MPa. The material is heat-treated using quenching and tempering to obtain its mechanical properties. This grade exhibits superior hardness as well as fatigue strength, rendering it fit for use in high-stress applications where structural integrity and durability are paramount.
| Carbon Steel 10.9 | C | P | S | B |
| 0.20-0.55 | 0.025 | 0.025 | 0.003 |
| Nominal thread diameter size range [mm] | Proof strength [MPa] | Yield strength (min) [MPa] | Tensile strength (min) [MPa] | Hardness [Rockwell] |
| 5–100 | 830 | 940 | 1040 | C32–39 |
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
Jaxon Steel is a trustworthy manufacturer and supplier of quality Carbon Steel 10.9 Fasteners in Dubai, UAE. We specialize in top-grade steel products like Carbon Steel, Alloy Steel, Mild Steel, and Galvanized Steel, with the main focus being on Carbon Steel Sheets and Plates. Our vast inventory also includes Pipes, Tubes, Flanges, Forged Fittings, and Bars. Committed to fast delivery and excellent customer service, we use only the finest raw materials to deliver excellent strength, durability, and performance for high-demand industrial uses. Contact us today for all your Carbon Steel 10.9 Fasteners needs!
| DIA | M4 | M5 | M6 | M8 | M10 | M12 | M14 | M16 | M18 | M20 | M22 | M24 | M27 | M30 | M33 | M36 | M39 | M42 | M45 | M48 | M52 |
| Pitch | 0.7 | 0.8 | 1 | 1.25 | 1.5 | 1.75 | 2 | 2.5 | 3 | 3.5 | 4 | 4.5 | 5 | ||||||||
| Grade A upto length | 40 | 50 | 60 | 80 | 100 | 120 | 140 | 150 | Grade A not applicable to these dia’s | ||||||||||||
| Head Across Flat (S) Nom = Max Min Grade A Grade B | 7 | 8 | 10 | 13 | 16 | 18 | 21 | 24 | 27 | 30 | 34 | 36 | 41 | 46 | 50 | 55 | 60 | 65 | 70 | 75 | 80 |
| 6.78 | 7.78 | 9.78 | 12.73 | 15.73 | 17.73 | 20.67 | 23.67 | 26.67 | 29.67 | 33.38 | 35.38 | Grade A not applicable to these dia’s | |||||||||
| 6.64 | 7.64 | 9.64 | 12.57 | 15.57 | 17.57 | 20.16 | 23.16 | 26.16 | 29.16 | 33 | 35 | 40 | 45 | 49 | 53.8 | 58.8 | 63.1 | 68.1 | 73.1 | 78.1 | |
| Head Height (K) Nom Tol + or – Grade A Grade B | 2.8 | 3.5 | 4 | 5.3 | 6.4 | 7.5 | 8.8 | 10 | 11.5 | 12.5 | 14 | 15 | 17 | 18.7 | 21 | 22.5 | 25 | 26 | 28 | 30 | 33 |
| 0.125 | 0.15 | 0.18 | 0.215 | Grade A not applicable to these dia’s | |||||||||||||||||
| 0.2 | 0.24 | 0.29 | 0.35 | 0.42 | 0.5 | ||||||||||||||||
| Across corners e Min Grade A Grade B | 7.66 | 8.79 | 11.05 | 14.38 | 17.77 | 20.03 | 23.36 | 26.75 | 30.14 | 33.53 | 37.72 | 39.98 | Grade A not applicable to these dia’s | ||||||||
| 7.5 | 8.63 | 10.89 | 14.2 | 17.59 | 19.85 | 22.78 | 26.17 | 29.56 | 32.95 | 37.29 | 39.55 | 45.2 | 50.85 | 55.37 | 60.79 | 66.44 | 71.3 | 76.95 | 82.6 | 88.25 | |
| Major Dia at thread (min) | 3.838 | 4.826 | 5.794 | 7.76 | 9.732 | 11.701 | 13.682 | 15.682 | 17.623 | 19.623 | 21.623 | 23.577 | 26.577 | 29.522 | 32.522 | 35.465 | 38.465 | 41.437 | 44.437 | 47.399 | 51.399 |
| Major Dia at thread (max) | 3.978 | 4.976 | 5.974 | 7.972 | 9.968 | 11.966 | 13.962 | 15.962 | 17.958 | 19.958 | 21.958 | 23.952 | 26.952 | 29.947 | 32.947 | 35.94 | 38.94 | 41.937 | 44.937 | 47.929 | 51.929 |
| Thread Length (b) For lengths < or = 125mm For lengths > 125mm <= 200mm For lengths > 200mm | 14 | 16 | 18 | 22 | 26 | 30 | 34 | 38 | 42 | 46 | 50 | 54 | 60 | 66 | Not specified as full thread recommended | ||||||
| 20 | 22 | 24 | 28 | 32 | 36 | 40 | 44 | 48 | 52 | 56 | 60 | 66 | 72 | 78 | 84 | 90 | 96 | 102 | 108 | 116 | |
| 33 | 35 | 37 | 41 | 45 | 49 | 53 | 57 | 61 | 65 | 69 | 73 | 79 | 85 | 91 | 97 | 103 | 109 | 115 | 121 | 129 | |
Carbon Steel 10.9 Fasteners have extensive application in high–strength and reliable applications. In the automotive industry, they find application in assembling engines, suspension, and structural parts. In construction, the fasteners give robust joints to steel structures, bridges, and industrial buildings. They play a crucial role in heavy machines, railways, mining machinery, and windmills where stress durability is critical. As a result of their enhanced mechanical characteristics, these fasteners are perfect for bearing loads and tough environments, hence their popularity among engineers and manufacturers in various high-performance industries.
