Bhavesh Steel is a prominent manufacturer and exporter of high-performance Carbon Steel 12.9 Fasteners in Dubai, UAE. We are known for our diligence towards quality and accuracy, and we supply varied industrial applications with a comprehensive series of fasteners designed for durability and strength. With emphasis on global standards and superior manufacturing processes, Bhavesh Steel gives its products the best performance and longevity. Our fasteners find extensive use in challenging applications in the UAE and overseas, establishing us as a quality-focused partner of choice for clients in construction, oil & gas, marine, and engineering sectors.

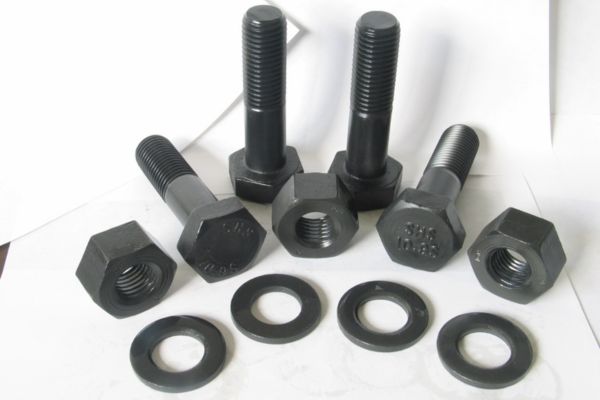

Carbon Steel 12.9 Fasteners are manufactured from medium carbon alloy steel, often enriched with constituents such as manganese, phosphorus, and sulfur to enhance strength and machinability. These fasteners are heat-treated to provide outstanding mechanical properties such as tensile strength of up to 1220 MPa and a yield strength of approximately 1100 MPa. They possess high hardness, good wear resistance, and superior load-carrying capacity. Because of their strong nature, Carbon Steel 12.9 Fasteners are perfect for high-stress applications, promising reliability and performance under severe mechanical loads and operating conditions.
| Carbon Steel 12.9 | C | P | S | B |
| 0.28-0.5 | 0.025 | 0.025 | 0.003 |
| Nominal thread diameter size range [mm] | Proof strength [MPa] | Yield strength (min) [MPa] | Tensile strength (min) [MPa] | Hardness [Rockwell] |
| 1.6–100 | 970 | 1100 | 1220 | C39–44 |
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
Jaxon Steel is a trustworthy manufacturer and supplier of quality Carbon Steel 12.9 Fasteners in Dubai, UAE. We specialize in top-grade steel products like Carbon Steel, Alloy Steel, Mild Steel, and Galvanized Steel, with the main focus being on Carbon Steel Sheets and Plates. Our vast inventory also includes Pipes, Tubes, Flanges, Forged Fittings, and Bars. Committed to fast delivery and excellent customer service, we use only the finest raw materials to deliver excellent strength, durability, and performance for high-demand industrial uses. Contact us today for all your Carbon Steel 12.9 Fasteners needs!
| DIA | M4 | M5 | M6 | M8 | M10 | M12 | M14 | M16 | M18 | M20 | M22 | M24 | M27 | M30 | M33 | M36 | M39 | M42 | M45 | M48 | M52 |
| Pitch | 0.7 | 0.8 | 1 | 1.25 | 1.5 | 1.75 | 2 | 2.5 | 3 | 3.5 | 4 | 4.5 | 5 | ||||||||
| Grade A upto length | 40 | 50 | 60 | 80 | 100 | 120 | 140 | 150 | Grade A not applicable to these dia’s | ||||||||||||
| Head Across Flat (S) Nom = Max Min Grade A Grade B | 7 | 8 | 10 | 13 | 16 | 18 | 21 | 24 | 27 | 30 | 34 | 36 | 41 | 46 | 50 | 55 | 60 | 65 | 70 | 75 | 80 |
| 6.78 | 7.78 | 9.78 | 12.73 | 15.73 | 17.73 | 20.67 | 23.67 | 26.67 | 29.67 | 33.38 | 35.38 | Grade A not applicable to these dia’s | |||||||||
| 6.64 | 7.64 | 9.64 | 12.57 | 15.57 | 17.57 | 20.16 | 23.16 | 26.16 | 29.16 | 33 | 35 | 40 | 45 | 49 | 53.8 | 58.8 | 63.1 | 68.1 | 73.1 | 78.1 | |
| Head Height (K) Nom Tol + or – Grade A Grade B | 2.8 | 3.5 | 4 | 5.3 | 6.4 | 7.5 | 8.8 | 10 | 11.5 | 12.5 | 14 | 15 | 17 | 18.7 | 21 | 22.5 | 25 | 26 | 28 | 30 | 33 |
| 0.125 | 0.15 | 0.18 | 0.215 | Grade A not applicable to these dia’s | |||||||||||||||||
| 0.2 | 0.24 | 0.29 | 0.35 | 0.42 | 0.5 | ||||||||||||||||
| Across corners e Min Grade A Grade B | 7.66 | 8.79 | 11.05 | 14.38 | 17.77 | 20.03 | 23.36 | 26.75 | 30.14 | 33.53 | 37.72 | 39.98 | Grade A not applicable to these dia’s | ||||||||
| 7.5 | 8.63 | 10.89 | 14.2 | 17.59 | 19.85 | 22.78 | 26.17 | 29.56 | 32.95 | 37.29 | 39.55 | 45.2 | 50.85 | 55.37 | 60.79 | 66.44 | 71.3 | 76.95 | 82.6 | 88.25 | |
| Major Dia at thread (min) | 3.838 | 4.826 | 5.794 | 7.76 | 9.732 | 11.701 | 13.682 | 15.682 | 17.623 | 19.623 | 21.623 | 23.577 | 26.577 | 29.522 | 32.522 | 35.465 | 38.465 | 41.437 | 44.437 | 47.399 | 51.399 |
| Major Dia at thread (max) | 3.978 | 4.976 | 5.974 | 7.972 | 9.968 | 11.966 | 13.962 | 15.962 | 17.958 | 19.958 | 21.958 | 23.952 | 26.952 | 29.947 | 32.947 | 35.94 | 38.94 | 41.937 | 44.937 | 47.929 | 51.929 |
| Thread Length (b) For lengths < or = 125mm For lengths > 125mm <= 200mm For lengths > 200mm | 14 | 16 | 18 | 22 | 26 | 30 | 34 | 38 | 42 | 46 | 50 | 54 | 60 | 66 | Not specified as full thread recommended | ||||||
| 20 | 22 | 24 | 28 | 32 | 36 | 40 | 44 | 48 | 52 | 56 | 60 | 66 | 72 | 78 | 84 | 90 | 96 | 102 | 108 | 116 | |
| 33 | 35 | 37 | 41 | 45 | 49 | 53 | 57 | 61 | 65 | 69 | 73 | 79 | 85 | 91 | 97 | 103 | 109 | 115 | 121 | 129 | |
Carbon Steel 12.9 Fasteners are widely utilized in applications that require high tensile strength and durability. They find ready use in applications like heavy machinery, vehicle assemblies, steel structural frames, and mechanical systems with heavy load. The fasteners find extensive application in industries such as construction, mining, transportation, and oil & gas, where parts need to endure heavy stress and vibrations. They are also ideal for bolting component parts in high-pressure vessels, bridges, and industrial machinery. Their high mechanical strength and fatigue resistance make them a vital component in mission-critical assemblies that need long-term performance and structural integrity.
