Bhavesh Steel is a prominent producer and distributor of superior quality carbon steel bolts in Dubai, UAE. Reputed for excellence, we deal in providing robust, corrosion-proof fasteners which are specifically designed to fulfill the needs of various industrial applications. Our carbon steel bolts are produced with cutting-edge technology and rigorous quality checks, which guarantee strength, durability, and long-lasting service life. With emphasis on customer satisfaction and prompt delivery, Bhavesh Steel has developed a reputable position in the UAE market. For construction, automobiles, or heavy equipment, our bolts offer reliable fastening solutions.
Carbon steel bolts are mainly made up of carbon and iron and contain different content levels of carbon, from low (0.05–0.30%), medium (0.30–0.60%), to high (0.60–1.00%) depending on strength requirements. There can be added elements such as manganese, silicon, and copper to improve certain properties. These bolts have high tensile strength, hardness, and abrasion resistance, with tensile strengths ranging from 400 to 800 MPa in most cases. Their mechanical properties can also be optimized by heat treatment treatments like quenching and tempering, and thus they can be used in environments with high stress.
Specification : ASTM F568 / ASME SF568
Dimension : DIN, ISO, ASTM, JIS, BS, GB, IS and all International Standards
Size Range : M3 – M56 | 3/6″ to 2″ | Custom Sizes
Length : 3 mm to 200 mm

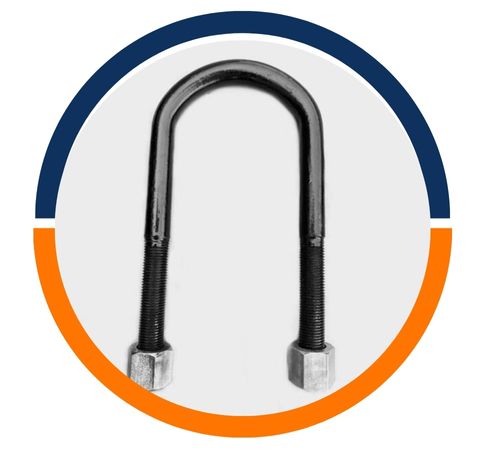

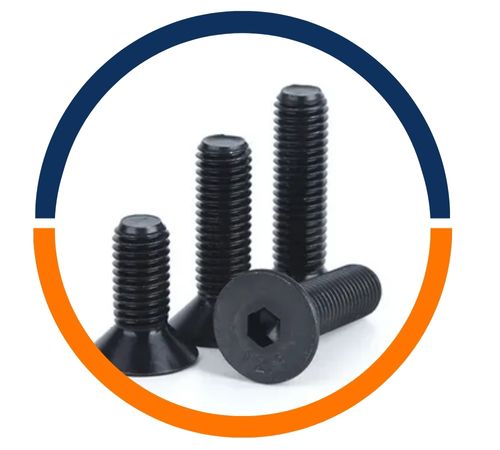

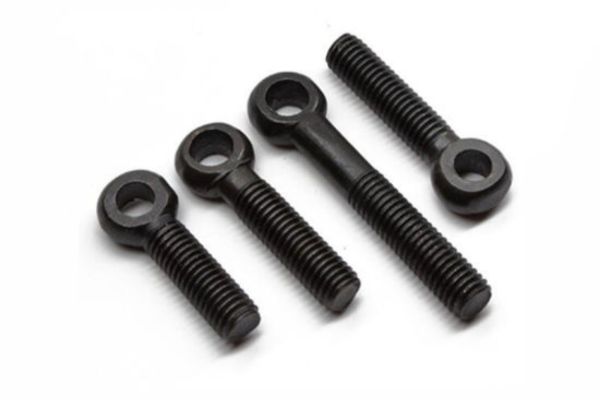

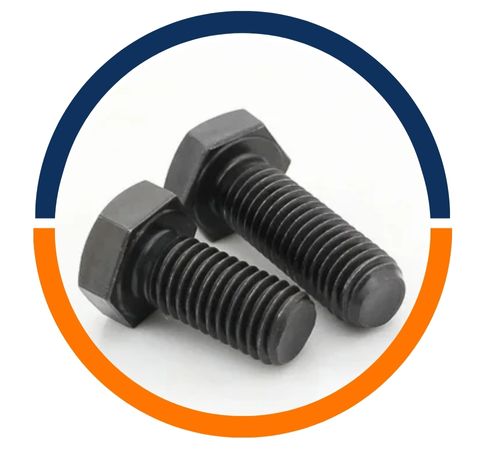

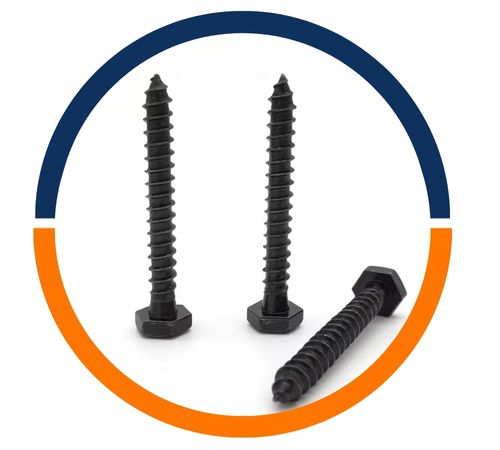

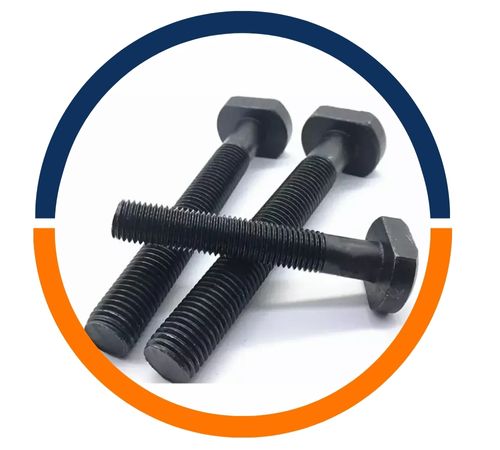

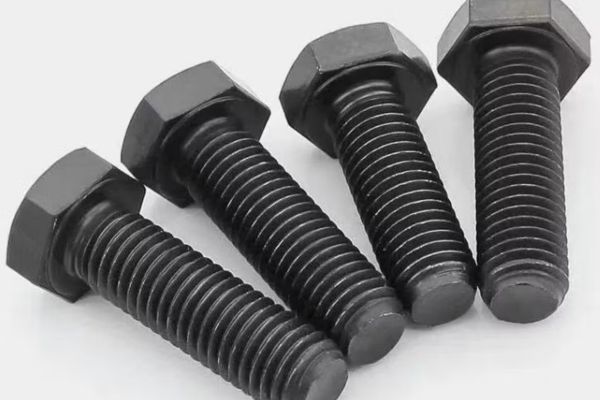

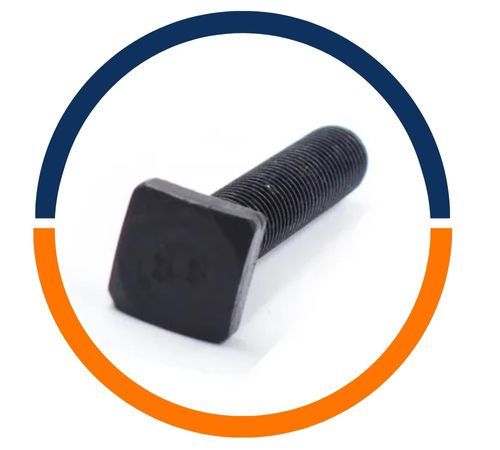

Type : Hex Head Bolts, Square Bolts, U bolts, Eye bolts, T bolt, Hex Bolt, Lag Bolts, Counter sunk Bolts
| Grade | C | P | S | B |
| Carbon Steel 10.9 | 0.20-0.55 | 0.025 | 0.025 | 0.003 |
| Carbon Steel 12.9 | 0.28-0.5 | 0.025 | 0.025 | 0.003 |
| Element | Nominal thread diameter size range [mm] | Proof strength [MPa] | Yield strength (min) [MPa] | Tensile strength (min) [MPa] | Hardness [Rockwell] |

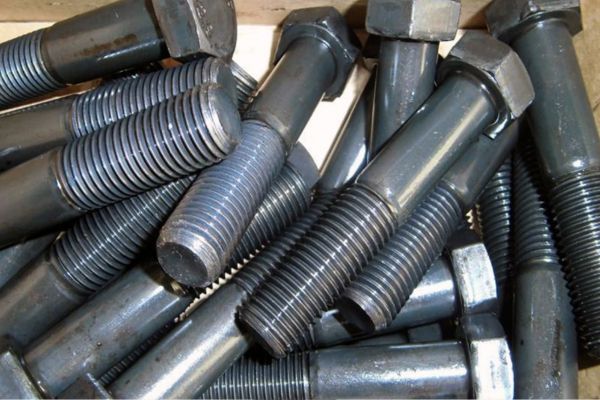

| Carbon Steel 10.9 | 5–100 | 830 | 940 | 1040 | C32–39 |
| Carbon Steel 12.9 | 1.6–100 | 970 | 1100 | 1220 | C39–44 |
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
Jaxon Steel is a trustworthy manufacturer and supplier of quality Carbon Steel Bolts in Dubai, UAE. We specialize in top-grade steel products like Carbon Steel, Alloy Steel, Mild Steel, and Galvanized Steel, with the main focus being on Carbon Steel Sheets and Plates. Our vast inventory also includes Pipes, Tubes, Flanges, Forged Fittings, and Bars. Committed to fast delivery and excellent customer service, we use only the finest raw materials to deliver excellent strength, durability, and performance for high-demand industrial uses. Contact us today for all your Carbon Steel Bolt needs!
| Heavy Hex Bolt Diameter | D | F | C | H | |||||
| Body Diameter | Width Across Flats | Width Across Corners | Height | ||||||
| Max | Basic | Max | Min | Max | Min | Basic | Max | Min | |
| 1/2 | 0.515 | 7/8 | 0.875 | 0.850 | 1.010 | 0.969 | 11/32 | 0.364 | 0.302 |
| 5/8 | 0.642 | 1-1/16 | 1.062 | 1.031 | 1.227 | 1.175 | 27/64 | 0.444 | 0.378 |
| 3/4 | 0.768 | 1-1/4 | 1.250 | 1.212 | 1.443 | 1.383 | 1/2 | 0.524 | 0.455 |
| 7/8 | 0.895 | 1-7/16 | 1.438 | 1.394 | 1.660 | 1.589 | 37/64 | 0.604 | 0.531 |
| 1 | 1.022 | 1-5/8 | 1.625 | 1.575 | 1.876 | 1.796 | 43/64 | 0.700 | 0.591 |
| 1-1/8 | 1.149 | 1-13/16 | 1.812 | 1.756 | 2.093 | 2.002 | 3/4 | 0.780 | 0.658 |
| 1-1/4 | 1.277 | 2 | 2.00 | 1.938 | 2.309 | 2.209 | 27/32 | 0.876 | 0.749 |
| 1-3/8 | 1.404 | 2-3/16 | 2.188 | 2.119 | 2.526 | 2.416 | 29/32 | 0.940 | 0.810 |
| 1-1/2 | 1.531 | 2-3/8 | 2.375 | 2.300 | 2.742 | 2.622 | 1 | 1.036 | 0.902 |
| 1-3/4 | 1.785 | 2-3/4 | 2.750 | 2.662 | 3.175 | 3.035 | 1-5/32 | 1.196 | 1.054 |
| 2 | 2.039 | 3-1/8 | 3.125 | 3.025 | 3.608 | 3.449 | 1-11/32 | 1.388 | 1.175 |
| 2-1/4 | 2.305 | 3-1/2 | 3.500 | 3.388 | 4.041 | 3.862 | 1-1/2 | 1.548 | 1.327 |
| 2-1/2 | 2.559 | 3-7/8 | 3.875 | 3.750 | 4.474 | 4.275 | 1-21/32 | 1.708 | 1.479 |
| Nominal or Basic Product Diameter | E | F | G | H | J | LT (Thread Length) | Y | ||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Body Diameter | Width Across Flats | Width Across Corners | Head Height | Wrenching Height | For Bolt Lengths | For Bolt Lengths | Transition Thread Length | ||||||||
| 1/4 | 0.25 | 0.25 | 0.245 | 7/16 | 0.438 | 0.428 | 0.505 | 0.488 | 5/32 | 0.163 | 0.150 | 0.106 | 0.750 | 1.000 | 0.250 |
| 5/16 | 0.3125 | 0.3125 | 0.3065 | 1/2 | 0.500 | 0.489 | 0.577 | 0.557 | 13/64 | 0.211 | 0.195 | 0.140 | 0.875 | 1.125 | 0.278 |
| 3/8 | 0.375 | 0.375 | 0.369 | 9/16 | 0.562 | 0.551 | 0.650 | 0.628 | 15/64 | 0.243 | 0.226 | 0.160 | 1.000 | 1.250 | 0.312 |
| 7/16 | 0.4375 | 0.4375 | 0.4305 | 5/8 | 0.625 | 0.612 | 0.722 | 0.698 | 9/32 | 0.291 | 0.272 | 0.195 | 1.125 | 1.375 | 0.357 |
| 1/2 | 0.5 | 0.5 | 0.493 | 3/4 | 0.750 | 0.736 | 0.866 | 0.840 | 5/16 | 0.323 | 0.302 | 0.215 | 1.250 | 1.500 | 0.385 |
| 9/16 | 0.5625 | 0.5625 | 0.5545 | 13/16 | 0.812 | 0.798 | 0.938 | 0.910 | 23/64 | 0.371 | 0.348 | 0.250 | 1.375 | 1.625 | 0.417 |
| 5/8 | 0.625 | 0.625 | 0.617 | 15/16 | 0.938 | 0.922 | 1.083 | 1.051 | 25/64 | 0.403 | 0.378 | 0.269 | 1.500 | 1.750 | 0.455 |
| 3/4 | 0.75 | 0.75 | 0.741 | 1-1/8 | 1.125 | 1.100 | 1.299 | 1.254 | 15/32 | 0.483 | 0.455 | 0.324 | 1.750 | 2.000 | 0.500 |
| 7/8 | 0.875 | 0.875 | 0.866 | 1-5/16 | 1.312 | 1.285 | 1.516 | 1.465 | 35/64 | 0.563 | 0.531 | 0.378 | 2.000 | 2.250 | 0.556 |
| 1 | 1 | 1 | 0.99 | 1-1/2 | 1.500 | 1.469 | 1.732 | 1.675 | 39/64 | 0.627 | 0.591 | 0.416 | 2.250 | 2.500 | 0.625 |
| 1-1/8 | 1.125 | 1.125 | 1.114 | 1-11/16 | 1.688 | 1.631 | 1.949 | 1.859 | 11/16 | 0.718 | 0.658 | 0.461 | 2.500 | 2.750 | 0.714 |
| 1-1/4 | 1.25 | 1.25 | 1.239 | 1-7/8 | 1.875 | 1.812 | 2.165 | 2.066 | 25/32 | 0.813 | 0.749 | 0.530 | 2.750 | 3.000 | 0.714 |
| 1-1/2 | 1.5 | 1.5 | 1.488 | 2-1/4 | 2.250 | 2.175 | 2.598 | 2.480 | 15/16 | 0.974 | 0.902 | 0.640 | 3.250 | 3.500 | 0.833 |
Carbon steel bolts are utilized in the majority of industries because they are strong, versatile, and inexpensive. In construction, they are critical in building structural connections, bridges, and infrastructure. In the automotive sector, they are used in engine components, frames, and suspension systems because they are resistant to stress and perform well. In heavy machinery, manufacturing, and oil & gas industries, carbon steel bolts provide secure fastening in high-temperature and high-pressure environments. They are also utilized in agricultural equipment, railways, and shipbuilding. Bhavesh Steel provides tailored solutions for each industry requirement with top-quality and superior performance.
Bhavesh Steel is a leading manufacturer, supplier and exporter of high-quality Carbon Steel, Alloy Steel, Mild Steel and Galvanized Steel products. Our extensive product range includes Pipes, Tubes, Flanges, Pipe Fittings, Forged Fittings, Sheets and Plates, catering to various industries in Dubai, UAE.
