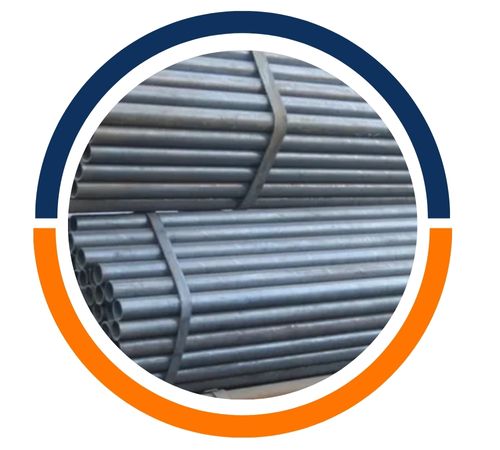

Bhavesh Steel, founded in 1995 and with its headquarters in Dubai, UAE, is a prominent producer and distributor dealing in high-grade carbon steel JIS G3461 pipes. These seamless alloy steel tubes are designed for optimal performance in high-temperature usage like boilers, heat exchangers, and superheaters. Bhavesh Steel’s focus on quality ensures that every pipe is manufactured to strict international standards, providing customers with strong and reliable solutions for their industrial requirements. With a strong distribution network and reputation for quality, Bhavesh Steel remains a trusted ally in the steel business.
JIS G3461 carbon steel pipes consist mainly of carbon, manganese, phosphorus, sulfur, silicon, chromium, and molybdenum. The carbon level is usually between up to 0.18%, the manganese level being between 0.30% and 0.60%. The phosphorus and sulfur are kept minimal, typically below 0.035%, to improve the weldability and minimize brittleness. Mechanical properties are tensile strengths of 415 MPa, yield strengths of 205 MPa, and elongation percentages of 30%, varying with the grade. These pipes are made to operate in high-temperature conditions and are best suited for heat transfer purposes.
| Standards | JIS G3461 Carbon Steel Pipe |
|---|---|

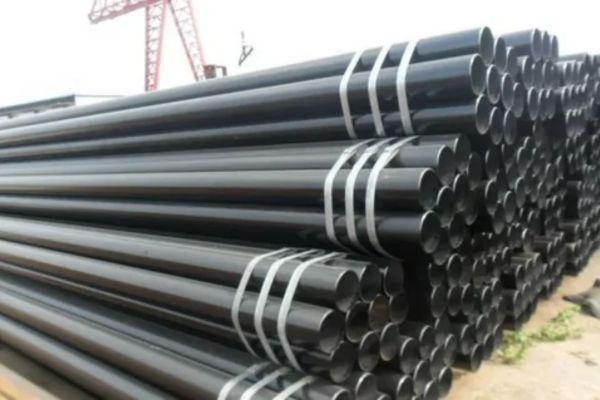

| JIS G3461 Carbon Steel Seamless Pipe Size | 4 to 219mm W. T.: 0.5 to 20mm |

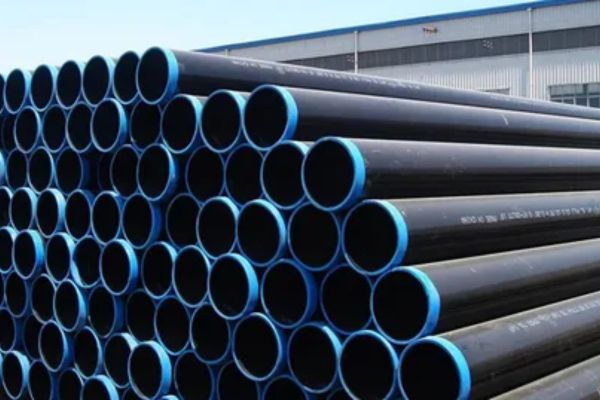

| JIS G3461 Carbon Steel Welded Pipe Size | 5.0 mm – 1219.2 mm |

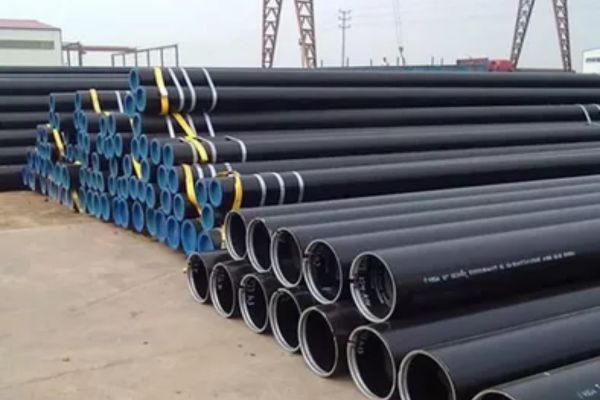

| JIS G3461 Carbon Steel EFW Pipe size | 5.0 mm – 1219.2 mm |
| JIS G3461 Carbon Steel Tube Swg & Bwg | 10 Swg., 12 Swg., 14 Swg., 16 Swg., 18 Swg., 20 Swg. |
| JIS G3461Â Carbon Steel Pipe Schedule | SCH5, SCH10, SCH10S, SCH20, SCH30, SCH40, SCH40S, STD, SCH80, XS, SCH60, SCH80, SCH120, SCH140, SCH160, XXS |
| JIS G3461 Carbon Steel Seamless Tube Size | 3.35 mm OD To 101.6 mm OD |
| JIS G3461 Carbon Steel Welded Tube Size | 6.35 mm OD To 152 mm OD |
| Swg & Bwg | 10 Swg., 12 Swg., 14 Swg., 16 Swg., 18 Swg., 20 Swg. |
| JIS G3456 Carbon Steel Tube wall thickness | 0.020″ –0.220″, (special wall thicknesses available) |
| Length | Single Random, Double Random, Standard & Cut length Pipe & Tube |
| Finish | Polished, AP (Annealed & Pickled), BA (Bright & Annealed), MF |
| Form | Round, Hydraulic, ‘U’ bent or Hollow,LSAW, Boiler, Straight Pipe, Clad Pipe, Rectangular, Square Pipe Etc |
| Type | Welded, Seamless, ERW, EFW, Fabricated Pipe, ‘U’ bent or Hollow, Hydraulic, LSAW, Boiler, Straight Tube, Tube Coil, Round, Rectangular, Square Tube etc |
| End | Plain End, Beveled End, Treaded Pipe & Tube |
| Marking | All JIS G3461 Carbon Steel Pipe are marked as follows: Standard, Grade, OD, Thickness, Length, Heat No. (Or according to the customer’s request.) |
| Application | Oil Pipe & Tube, Gas Pipe & Tube, Fluid Pipe & Tube, Boiler Pipe & Tube, Heat exchanger Tube |
| Value Added Service | Draw & Expansion as per required Size & Length, Polish (Electro & Commercial) Annealed & Pickled Bending, Machining Etc. |
| Test Certificate | Manufacturer Test Certificate Laboratory Test Certificate from Govt. Approved Lab. Under Third Party Inspection |
| Standard | Grade | Chemical Composition Limits (%) | ||||
| C | Si | Mn | P | S | ||
| JIS G3461 | JIS G3461 STB340 | ≤ 0.18 | ≤ 0.3 | 0.30-0.60 | ≤ 0.035 | ≤ 0.035 |
| JIS G3461 STB410 | ≤ 0.32 | ≤ 0.35 | 0.30-0.80 | ≤ 0.035 | ≤ 0.035 | |
| JIS G3461 STB510 | ≤ 0.25 | ≤ 0.35 | 1.00-1.50 | ≤ 0.035 | ≤ 0.035 | |
| Grade | Tensile Property (N/mm2) | Yield Point or Yield Strength (N/mm2) | Elongation (%) | ||
| OD ≥20 mm | 10 mm ≤OD ＜20 mm | OD ＜10 mm | |||
| NO. 11 Sample; NO. 12 Sample | NO. 11 Sample | NO. 11 Sample | |||
| Longitudinal | Transverse | Transverse | |||
| JIS G3461 STB340 | ≥ 340 | ≥ 175 | ≥ 35 | ≥ 30 | ≥ 27 |
| JIS G3461 STB410 | ≥ 410 | ≥ 255 | ≥ 25 | ≥ 20 | ≥ 17 |
| JIS G3461 STB510 | ≥ 510 | ≥ 295 | ≥ 25 | ≥ 20 | ≥ 17 |
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
Jaxon Steel is a leading manufacturer and distributor of high-quality Carbon Steel JIS G3461 Pipe in Dubai, UAE. Offering premium steel materials, the company provides an extensive range of products, including Carbon Steel, Alloy Steel, Mild Steel, and Galvanized Steel. Our diverse inventory includes Pipes, Tubes, Flanges, Pipe Fittings, Forged Fittings, Sheets, and Plates. Committed to timely delivery and exceptional service, we ensure that only the finest raw materials are used to guarantee superior performance in all industrial applications with stringent requirements. Contact us today to meet your Carbon Steel JIS G3461 Pipe needs.
| Component length (mm) | OD 30-100 mm | OD 100-254 mm |
| 10-100 | + 1.0/- 0 | + 2.0/- 0 |
| 100-600 | + 2.0/- 0 | + 3.0/- 0 |
| 600-1200 | + 3.0/- 0 | + 4.0/- 0 |
| 1200-5000 | + 5.0/- 0 | + 6.0/- 0 |
Carbon steel JIS G3461 pipes find extensive use across various industries because of their superior strength and heat transfer characteristics. In the energy generation industry, the pipes are used in superheaters, economizers, and boilers to efficiently conduct heat and enhance energy efficiency. They are used in steam-producing systems and fossil fuel plants due to their resistance to high pressures and temperatures. In addition, JIS G3461 pipes find application in refineries and petrochemical plants with dependable performance in extreme conditions.
