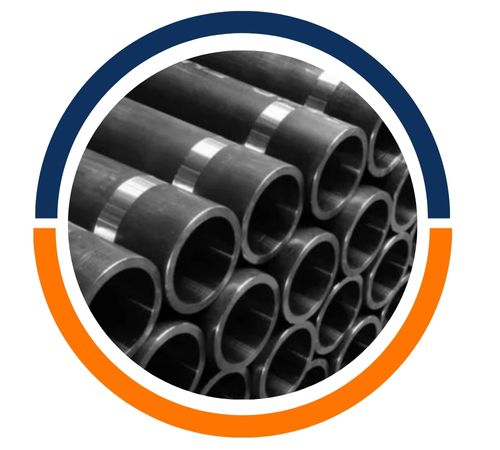

Bhavesh Steel, founded in 1995 and having its headquarters in Dubai, UAE, is a prominent producer and distributor with expertise in producing high-quality SA214 tubing made of carbon steel. These tubes are designed to deliver exceptional performance in heat exchangers, economizers, and other high-pressure applications. Bhavesh Steel ensures quality in every tube to meet high international standards, providing clients with long-lasting and efficient solutions for their industrial requirements. With a strong distribution network and an excellence reputation, Bhavesh Steel is still a trusted ally in the steel business.
Carbon steel SA214 tubing is made up mostly of carbon, manganese, phosphorus, sulfur, and silicon. The content of carbon is usually between 0.30% and 0.35%, and content of manganese is between 0.60% and 0.90%. The level of phosphorus and sulfur is maintained low, typically less than 0.035% and 0.035%, respectively, for improved weldability and lower brittleness. These tubes have tensile strength and yield strength of around 415 MPa (60 ksi) and 240 MPa (35 ksi), respectively, which render them suitable for high-pressure use.
| Grade: | ASME/ASTM SA179, SA192, SA210, SA178, SA214, API 5L |
|---|---|
| Size: | 1/8” NB TO 24” NB Sch 40/80/160/XXS |
| Form | Round, Square, Rectangular, Coil, U Tube, |
| Length | Single Random, Double Random & Required Length |
| End | Plain End, Bevelled End |
| Type | Seamless / ERW / Welded |
| Certification For Carbon | Mill Test Certificate as per EN 10204 / 3.2B |
| General Requirements | ASTM A 530/A 530M |
| Dimensional Tolerances | ANSI B 36.10 |
| OD Range | 1.250″ – 6.000″ (30-150mm) |
| Wall Range | 0.095″ – 1.000″ (.2.5-25mm) |
| Element | A/SA 214 |
| C | 0.18 max. |
| Mn | 0.27 – 0.63 |
| P | 0.035 max |
| S | 0.035 max |
| Element | A/SA 214 |
| Tensile Strength KSI (MPa) | 47[325] |
| Yield Strength KSI (MPa) | 26[180] |
| Elongation min. % | ≥35% |
| Hardness | ≤72 HRB |
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
Jaxon Steel is a leading manufacturer and distributor of high-quality Carbon Steel SA214 Tubing in Dubai, UAE. We provide premium steel materials and a diverse range of products, including Alloy Steel, Carbon Steel, Mild Steel, and Galvanized Steel. Our extensive inventory includes Tubes, Pipes, Flanges, Pipe Fittings, Forged Fittings, Sheets, and Plates. Dedicated to prompt delivery and exceptional customer service, we source the finest raw materials to ensure superior strength and durability for demanding industrial applications. Contact us today for all your Carbon Steel SA214 Tubing needs!
| Designation of Diameter | O/D | Nominal Wall Thickness | ||||||||||||||||||
| DIA | SCH.5S | SCH.5 | SCH 10S | SCH.10 | SCH.20S | SCH.30 | SCH.40S | SCH.40 | SCH 60 | |||||||||||
| (A) | (B) | Meter MM | Wall Thk | Weight Kg/Mtr | Wall Thk | Weight Kg/Mtr | Wall Thk | Weight Kg/Mtr | Wall Thk | Weight Kg/Mtr | Wall Thk | Weight Kg/Mtr | Wall Thk | Weight Kg/Mtr | Wall Thk | Weight Kg/Mtr | Wall Thk | Weight Kg/Mtr | Wall Thk | Weight Kg/Mtr |
| 6 | 1/8 | 10.3 | 1 | 0.23 | 1.2 | 0.27 | 1.5 | 0.33 | 1.73 | 0.37 | ||||||||||
| 8 | 1/4 | 13.7 | 1.2 | 0.37 | 1.65 | 0.49 | 2 | 0.58 | 2.24 | 0.64 | ||||||||||
| 10 | 3/8 | 17.2 | 1.2 | 0.47 | 1.65 | 0.63 | 2 | 0.74 | 2.31 | 0.87 | ||||||||||
| 15 | 1/2 | 21.3 | 1.65 | 0.01 | 1.65 | 0.81 | 2.11 | 1.02 | 2.11 | 1.02 | 2.5 | 1.15 | 2.77 | 1.29 | ||||||
| 20 | 3/4 | 26.7 | 1.65 | 1.03 | 1.65 | 1.03 | 2.11 | 1.3 | 2.11 | 1.3 | 2.5 | 1.49 | 2.87 | 1.71 | ||||||
| 25 | 1 | 33.4 | 1.65 | 1.31 | 1.65 | 1.31 | 2.77 | 2.13 | 2.77 | 2.13 | 3 | 2.24 | 3.38 | 2.54 | ||||||
| 32 | 11/4 | 24.2 | 1.65 | 1.67 | 1.65 | 1.67 | 2.77 | 2.73 | 2.77 | 2.73 | 3 | 2.9 | 3.56 | 3.44 | ||||||
| 40 | 11/2 | 48.3 | 1.65 | 1.93 | 1.65 | 1.93 | 2.77 | 3.16 | 2.77 | 3.16 | 3 | 3.35 | 3.68 | 4.11 | ||||||
| 50 | 2 | 60.3 | 1.65 | 1.93 | 1.65 | 2.42 | 2.77 | 3.99 | 2.77 | 3.99 | 3.5 | 4.9 | 3.91 | 5.52 | ||||||
| 65 | 21/2 | 73 | 2.11 | 3.75 | 2.11 | 3.75 | 3.05 | 5.34 | 3.05 | 5.34 | 3.5 | 6 | 5.16 | 8.77 | ||||||
| 80 | 3 | 88.9 | 2.11 | 4.59 | 2.11 | 4.59 | 3.05 | 6.56 | 3.05 | 6.56 | 4 | 8.37 | 5.49 | 11.47 | ||||||
| 90 | 31/2 | 101.6 | 2.11 | 5.25 | 2.11 | 5.25 | 3.05 | 7.53 | 3.05 | 7.53 | 4 | 9.62 | 5.74 | 13.78 | ||||||
| 100 | 4 | 114.3 | 2.11 | 5.93 | 2.11 | 5.93 | 3.05 | 8.5 | 3.05 | 8.5 | 4.5 | 12.18 | 6.02 | 6.32 | ||||||
| 125 | 5 | 141.3 | 2.77 | 9.61 | 2.77 | 9.61 | 3.4 | 11.74 | 3.43 | 11.74 | 5 | 16.8 | 6.55 | 2210 | ||||||
| 150 | 6 | 168.3 | 2.77 | 11.47 | 2.77 | 11.47 | 3.4 | 14.04 | 3.43 | 14.04 | 5.5 | 22.08 | 7.11 | 28.69 | ||||||
| 200 | 8 | 219.1 | 2.77 | 15 | 2.77 | 15 | 3.76 | 20.77 | 3.76 | 20.27 | 6.35 | 33.82 | 7.04 | 37.38 | 8.18 | 43.2 | 10.81 | 53.9 | ||
| 250 | 10 | 273.1 | 3.4 | 22.95 | 3.4 | 22.95 | 4.19 | 28.2 | 4.19 | 28.2 | 6.35 | 42.41 | 7.8 | 51.81 | 9.27 | 61.22 | 12.2 | 82.8 | ||
| 300 | 12 | 323.9 | 3.96 | 31.72 | 4.19 | 33.6 | 4.57 | 36.54 | 4.57 | 36.54 | 6.35 | 50.48 | 8.38 | 66.2 | 9.53 | 75.01 | 10.31 | 80.94 | 14.27 | 110.62 |
| 350 | 14 | 355.6 | 3.96 | 34.86 | 4.78 | 41.99 | 6.35 | 55.53 | 7.92 | 68.95 | 9.53 | 82.58 | 9.53 | 82.58 | 11.13 | 96 | 15.06 | 128.42 | ||
| 400 | 16 | 406.4 | 4.19 | 42.2 | 4.78 | 48.07 | 6.35 | 63.61 | 7.92 | 79.03 | 9.53 | 94.7 | 9.53 | 94.7 | 12.7 | 125.2 | 16.66 | 162.59 | ||
| 450 | 18 | 457.2 | 4.19 | 47.46 | 4.78 | 54.15 | 6.35 | 71.69 | 7.92 | 89.1 | 11.13 | 124.32 | 9.53 | 106.83 | 14.27 | 158.27 | 19.05 | 209 | ||
| 500 | 2C | 508 | 4.78 | 60.23 | 5.54 | 69.7 | 6.35 | 79.76 | 9.53 | 118.93 | 12.7 | 157.51 | 9.53 | 118.9 | 15.06 | 185.89 | 2062 | 251.65 | ||
| 550 | 22 | 558.8 | 4.78 | 65.95 | 5.54 | 76.75 | 6.35 | 87.84 | 9.53 | 131.07 | 12.7 | 173.66 | 9.53 | 131.07 | 15.88 | 216.04 | 22.23 | 298.55 | ||
| 600 | 24 | 609.6 | 5.54 | 83.8 | 6.35 | 95.92 | 6.35 | 95.92 | 9.53 | 143.2 | 14.27 | 212.72 | 9.53 | 143.2 | 17.45 | 258.74 | 24.59 | 360.21 | ||
| 650 | 26 | 660.4 | 7.92 | 129.4 | 12.7 | 205.97 | 9.53 | 155.32 | ||||||||||||
| 700 | 28 | 711.2 | 7.92 | 139.47 | 12.7 | 222.13 | 15.88 | 276.48 | 9.53 | 167.44 | ||||||||||
| 750 | 3C | 762 | 6.35 | 120.15 | 7.92 | 149.55 | 7.92 | 149.55 | 12.7 | 238.28 | 15.88 | 296.68 | 9.53 | 179.56 | ||||||
| 800 | 32 | 812.8 | 7.92 | 159.62 | 12.7 | 254.44 | 15.88 | 316.88 | 9.53 | 191.69 | 17.48 | 348.11 | ||||||||
| 850 | 34 | 863.6 | 7.92 | 169.64 | 12.7 | 270.5 | 15.88 | 336.96 | 9.53 | 203.74 | 17.48 | 370.22 | ||||||||
| 900 | 36 | 914.4 | 7.92 | 179.77 | 12.7 | 286.75 | 15.88 | 357.28 | 9.53 | 215.93 | 19.05 | 427.09 | ||||||||
Carbon steel SA214 tubing is commonly employed across many industries because of its outstanding strength and heat transfer characteristics. In the power generation industry, the tubes are used in air preheaters, economizers, and heat exchangers to transfer heat with high efficiency and enhance energy efficiency. They are also being used in steam-generating boilers and fossil fuel plants because of their high temperature and pressure resistance capabilities. Moreover, SA214 tubes are employed in water systems and waste heat recovery equipment, ensuring stable performance in harsh conditions.
Bhavesh Steel is a leading manufacturer, supplier and exporter of high-quality Carbon Steel, Alloy Steel, Mild Steel and Galvanized Steel products. Our extensive product range includes Pipes, Tubes, Flanges, Pipe Fittings, Forged Fittings, Sheets and Plates, catering to various industries in Dubai, UAE.
