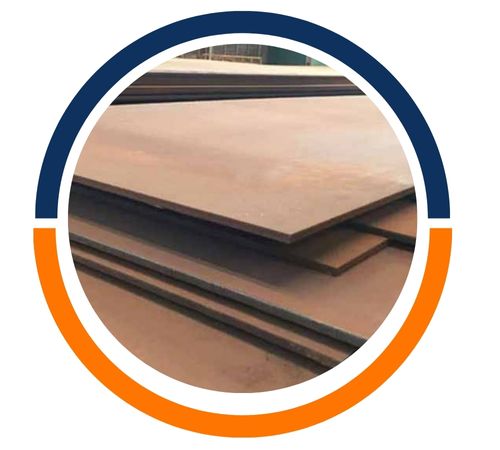

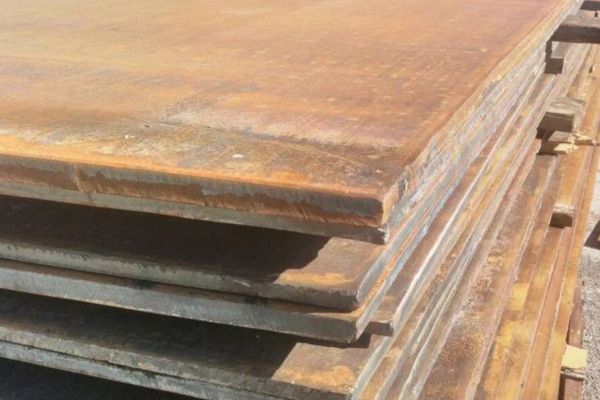

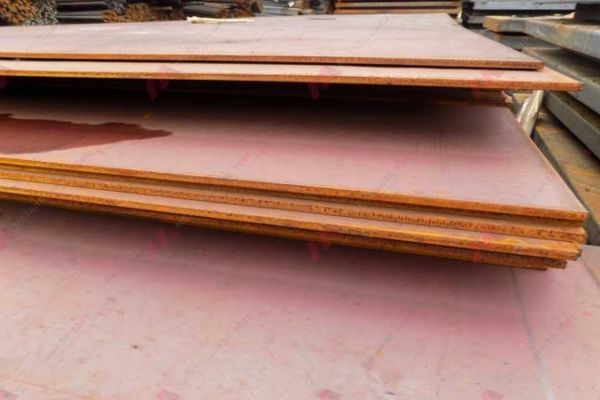

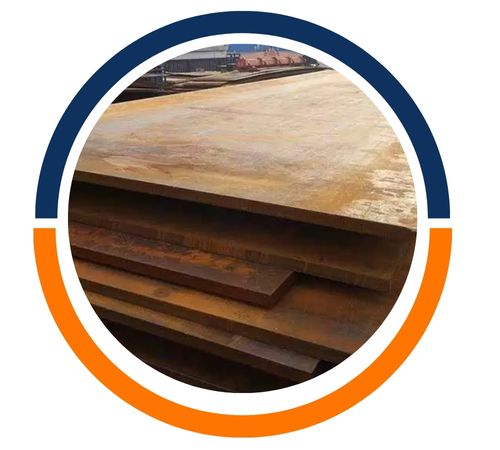

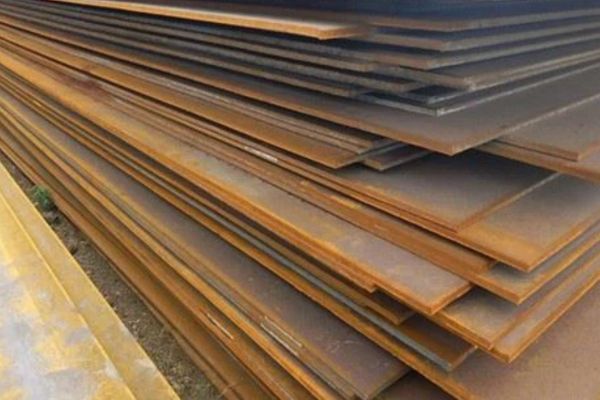

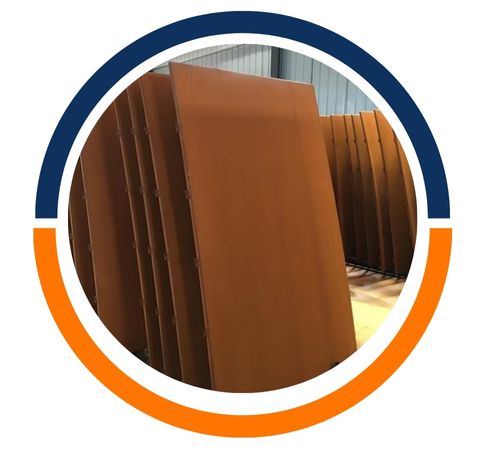

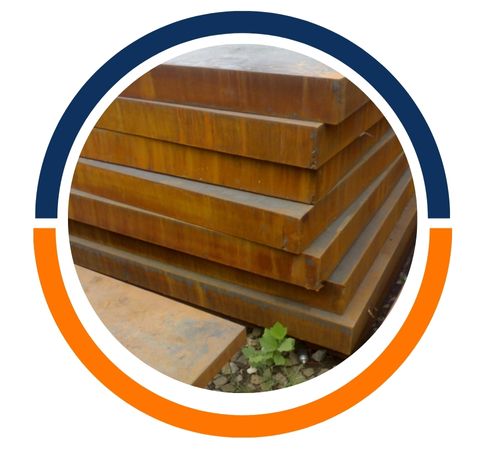

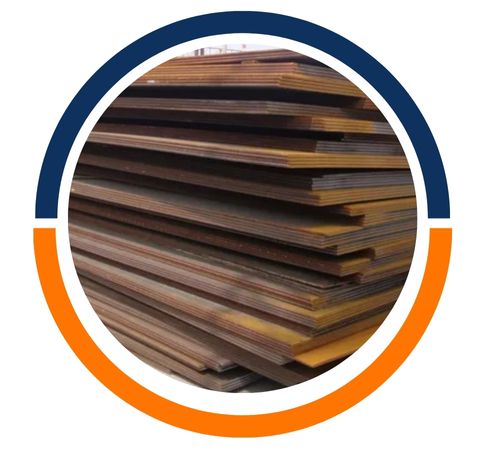

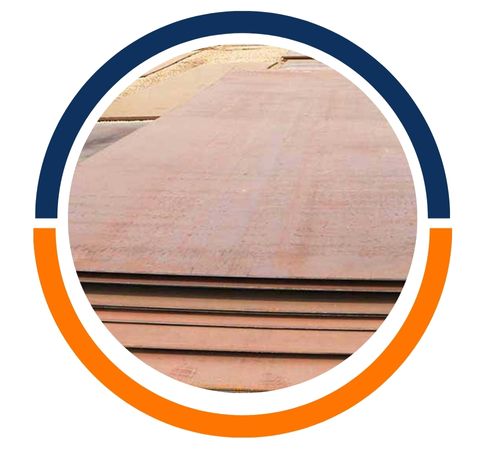

Weather-resistant steel solutions that meet contemporary engineering requirements are provided by Bhavesh Steel, a well-known manufacturer and supplier of Corten Steel S355JOW Sheets and Plates in Dubai, United Arab Emirates. Long-term outdoor use is made possible by our Corten Steel products’ remarkable durability, corrosion resistance, and self-healing rust layer. In order to satisfy the demands of sectors like architecture, construction, and infrastructure, Bhavesh Steel guarantees precision manufacturing and global quality standards. We are pleased to provide high-performance materials with an emphasis on dependability and client satisfaction to customers throughout the United Arab Emirates and the Middle East.
S355JOW Corten Steel Alloy steels made of carbon, manganese, silicon, chromium, copper, and nickel make up the majority of sheets and plates. These components help the material resist corrosion in the atmosphere. A stable oxide layer forms on the steel to prevent additional corrosion. It usually has a tensile strength between 470 and 630 MPa and a minimum yield strength of 355 MPa. Even in erratic weather, the material shows good toughness, weldability, and impact resistance. It is ideal for outdoor use that is exposed or uncoated due to its mechanical and structural qualities.
Grade : S355JOW Corten Steel Plates
Standard : ASTM A588, A242 / ASME SA588, SA242
Width : 750mm to 1500mm,
Length : 2500mm to 12000mm
Thickness : 3MM to 50mm
Type : Corten Steel / High-Strength Low-alloy Structural Steel
Process : Hot-Rolled (HR)
|
Grade |
C |
Si |
Mn |
P |
S |
N |
Addition of nitrogen binding elements |
Cr |
Cu |
|
S355J0W |
0.16 |
0.50 |
0.50/1.50 |
0.035 |
0.035 |
0.009 |
– |
0.40/0.80 |
0.25/0.55 |
|
Grade |
Min. Yield Strength Reh MPa |
Tensile Strength Rm MPa |
|||||||
|
Nominal Thickness (mm) |
Nominal Thickness (mm) |
||||||||
|
≤16 |
>16 ≤40 |
>40 ≤63 |
>63 ≤80 |
>80 ≤100 |
>100 ≤150 |
>3 |
>3 ≤100 |
>100 ≤150 |
|
|
S355J0W |
355 |
345 |
335 |
325 |
315 |
295 |
510/680 |
470/630 |
450/600 |
Grade | Material # | EN 10155 | SEW 087 | NFA 35-502 | UNI | BS 4360 | ASTM | JISG3114 |
S355JOW | 1.8959 | S355J0W | – | E 36 WB 3 | Fe 510 C2K1 | WR 50 B | A588 – A242 Gr. 1 | SMA 50 AW |
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
S355JOW Corten Steel In structural and architectural applications where long-term weather resistance is crucial, sheets and plates are frequently utilised. They are perfect for constructing bridges, retaining walls, facades, and structural cladding. This material’s rustic, beautiful finish that changes with time makes it a favourite among architects. Railcars and shipping containers are two examples of its use in the transportation industry. Steel is appropriate for outdoor sculptures, signage, fencing, and landscaping components due to its longevity and ease of maintenance. Its high strength and self-protective layer make it an economical and environmentally responsible option for harsh environments.
