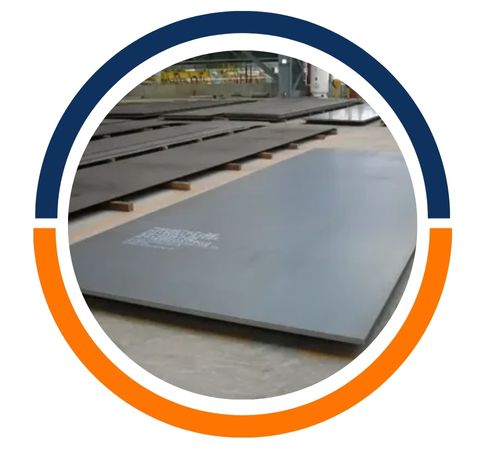

Bhavesh Steel is a reliable manufacturer and exporter of HIC Resistant Steel Sheet and Plate in Dubai, UAE, providing high–quality steel products that exceed international standards. Committed to quality, reliability, and customer satisfaction, Bhavesh Steel caters to numerous industries that demand corrosion-resistant applications. Our HIC resistant plates are designed specifically to counteract severe, hydrogen-containing environments, rendering them ideal for critical applications. Reputed for punctual delivery and compliance with international specifications, Bhavesh Steel has earned a solid reputation in the country as a reliable partner for high-performance steel products.
HIC Resistant Steel Sheets and Plates are produced from low carbon steel with closely controlled chemical analyses, such as low sulfur and phosphorus contents and alloying contents like manganese and silicon. Such plates are subjected to sophisticated heat treatment and refining processes for improving resistance against hydrogen-induced cracking. They demonstrate superior mechanical characteristics, including high tensile strength, good yield performance, and better impact strength. They are tough and ductile, and they can be used in harsh environments where exposure to hydrogen sulfide is imminent.
| Material | ASTM A516 |
| Grade | SA516 Gr 65, SA516 Gr 70 ,SA516 Gr 60 , Gr 60N |
| Size |
|
| Manufacturing Process | Hot-Rolled |
| Impact tested | -52° C |
Technical requirements | high strength and high toughness requirements, Detection, Z15 – Z35 thickness direction performance requirements, etc |
| Condition of Supply | Heat Treatment Simulated Post-Weld , Furnace Normalizing, As Rolled, Normalized Rolling, Vacuum Degassing or as per need |
| Base Plate | hot dipped zinc coated and A-Z coated steel sheet, Cold rolled steel sheet |
| C | ≤0.2 |
| Mn | 0.85–1.20 |
| Cu | ≤0.2 |
| Cev | ≤0.41 |
| S | ≤0.001 |
| Si | 0.15–0.40 |
| P | ≤0.010 |
| Mo | ≤0.1 |
| Ni | ≤0.4 |
| Cr | ≤0.3 |
| ASTM/ASME | DIN | European Norm | British Standard |
| A/SA516 – Grade 60 | DIN 17155 HII | EN10028 P265GH | BS1501-161-430A |
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
| Grade | Plates Thickness |
|---|---|
| A516 60 | ≤12.5mm |
| A516 60 | ≥100 and ≤200mm |
| A516 60 | ≥12.5 mm and ≤50mm |
| A516 60 | >200mm |
| A516 65 Dicrest only | ≥100 mm and ≤200mm |
| A516 60 | ≥50 mm and ≤100mm |
| A516 65 Dicrest only | ≤12.5mm |
| A516 65 Dicrest only | ≥12.5 mm and ≤50mm |
| A516 65 Dicrest only | ≥50 mm and ≤100 mm |
| A516 70 | >200 mm |
| A516 65 Dicrest only | >200mm |
| A516 70 | ≥100 mm and ≤200mm |
| A516 70 | ≤12.5mm |
| A516 70 | ≥50 mm and ≤100mm |
| A516 70 | ≥12.5 mm and ≤50mm |
| Lengths in mm | Plates Thickness in Inches | Widths in mm | Lbs/Sft |
|---|---|---|---|
| 240 | 7/16 Inches | 96 | 17.870 Lbs/Sft |
| 96, 120, 240 | 5/16 Inches | 60 ,48 , 84 , 72 ,96 | 12.760 Lbs/Sft |
| 96, 120, 124,133, 144, 156, 240 | 3/16 Inches | 7.660 Lbs/Sft | |
| 110, 96, 120, 240, 144 | 1/4 Inches | 10.210 Lbs/Sft | |
| 120, 96, 144, 169, 240, 260 | 3/8 Inches | 15.320 Lbs/Sft | |
| 120, 96, 144, 240 | 1/2 Inches | 20.420 Lbs/Sft | |
| 240 | 1 1/8 Inches | 96 | 45.950 Lbs/Sft |
| 96, 240, 120, 480 | 1 Inches | 48, 72, 96 | 40.840 Lbs/Sft |
| 96, 240, 120, 480 | 3/4 Inches | 48 , 72 , 84, 96 | 30.630 Lbs/Sft |
| 240 | 7/8 Inches | 96 | 35.740 Lbs/Sft |
| 240, 120, 480 | 5/8 Inches | 48 , 96 | 25.530 Lbs/Sft |
| 96, 120, 240 | 1 1/4 Inches | 48, 96 | 51.050 Lbs/Sft |
| 120, 240 | 1 1/2 Inches | 96 | 61.260 Lbs/Sft |
| 240 | 1 3/4 Inches | 71.470 Lbs/Sft | |
| 240 | 1 3/8 Inches | 56.160 Lbs/Sft | |
| 120, 240 | 2 Inches | 81.680 Lbs/Sft | |
| 240 | 2 1/2 Inches | 102.100 Lbs/Sft | |
| 1 5/8 Inches | 66.370 Lbs/Sft | ||
| 2 3/4 Inches | 112.310 Lbs/Sft | ||
| 2 1/4 Inches | 91.890 Lbs/Sft | ||
| 3 Inches | 122.520 Lbs/Sft | ||
| 120 | 3 1/2 Inches | 142.940 Lbs/Sft | |
| 120 | 6 Inches | 245.040 Lbs/Sft | |
| 120 | 3 3/4 Inches | 153.150 Lbs/Sft | |
| 144 | 3 1/4 Inches | 132.730 Lbs/Sft | |
| 144, 180 | 4 Inches | 163.360 Lbs/Sft | |
| 120 | 4 1/2 Inches | 183.780 Lbs/Sft | |
| 120 | 4 1/4 Inches | 173.570 Lbs/Sft | |
| 144 | 5 Inches | 204.200 Lbs/Sft | |
| 160 | 7 Inches | 285.880 Lbs/Sft |
These steel plates are commonly applied in petrochemical, oil and gas, and power generation industries where sour gas surroundings present a major risk factor to structural integrity. Some of the common usage includes pressure vessels, heat exchangers, storage tanks, and pipelines under high pressure and corrosive conditions. Their hydrogen cracking resistance and strength in offshore drillings and refineries provide safety and life. Their durability in harsh conditions renders them a fundamental material in conditions that require both resistance to degradation by chemicals and strength.
