Bhavesh Steel is a renowned manufacturer and distributor of ASTM A333 Grade 6 low-temperature carbon steel pipes operating from Dubai, UAE. With a focus on premium steel products, Bhavesh Steel serves industries demanding materials that perform well in sub-zero conditions. Their A333 Gr. 6 pipes are designed to provide superior notch toughness and impact resistance at temperatures as low as -45°C. Committed to excellence and customer satisfaction, Bhavesh Steel has become a reliable name in the UAE steel market.

Low Temperature Carbon Steel A333 Gr 6 Pipe Exporter in UAE, A333 Grade 6 Pipe Price List in Dubai, ASTM A333 Gr 6 Low Temperature Carbon Steel Pipe Supplier in Ajman, Grade 6 Low Temperature Carbon Steel Pipes Exporter in Dubai, Grade 6 Carbon Steel Seamless Pipes Size Chart, ASTM A333 Grade 6 Carbon Steel Pipe Price in Jebel Ali, Low Temperature Carbon Steel A333 Gr 6 Pipe Weight Chart, Gr 6 A333 LTCS Pipe Supplier in Sharjah, Gr 6 Low Temperature Carbon Steel Pipe Stockist in Ajman

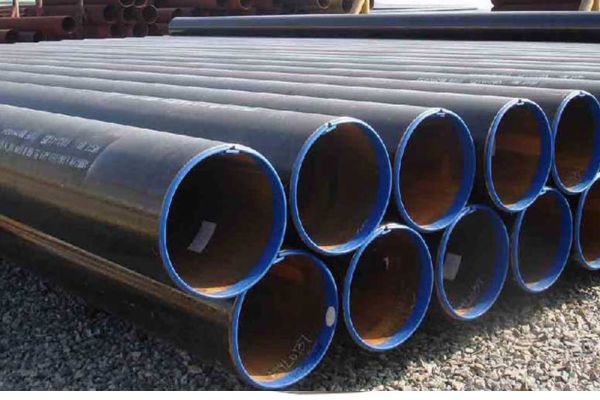

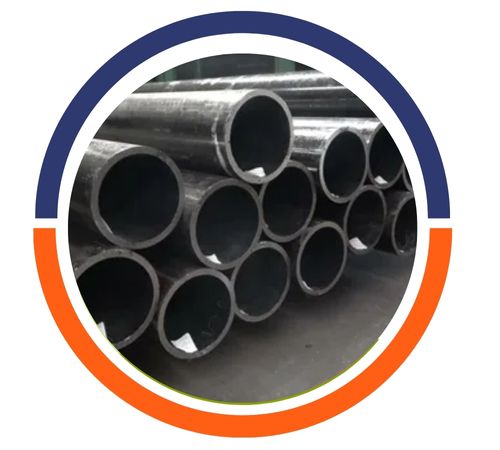

ASME SA333 Grade 6 Carbon Steel ERW Pipes

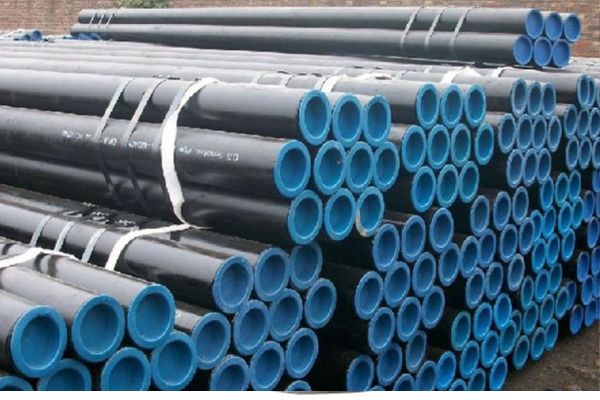

Gr 6 Low Temperature Carbon Steel Pipe

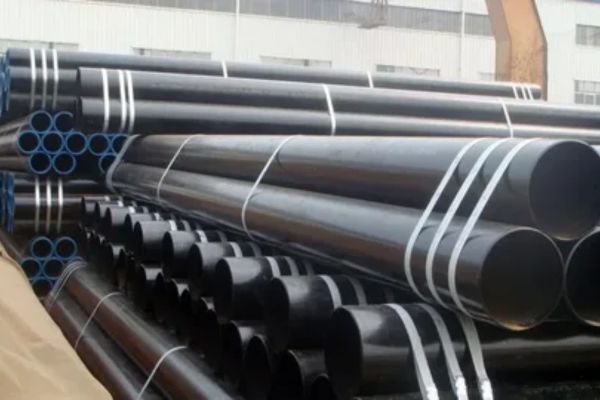

LTCS ASTM A333 Gr 6 Schedule Pipes

What is Low Temperature Carbon Steel A333 Gr 6 Pipe?

ASTM A333 Grade 6 low-temperature carbon steel pipes consist of carbon (≤0.30%), manganese (0.29–1.06%), phosphorus (≤0.025%), sulfur (≤0.025%), silicon (0.10% min), nickel (0.40% max), and chromium (0.30% max). They have a minimum tensile strength of 415 MPa, yield strength of 240 MPa, and elongation of 30% in the longitudinal direction and 16.5% in the transverse direction. The pipes are heat-treated to regulate their microstructure to perform at their best in low-temperature operations.

Gr 6 Low Temperature Carbon Steel Pipe Supplier in Dubai, A333 Grade 6 Pipe Exporter in Ajman, SA 333 Gr 6 SMLS Pipes Sizes in mm, Gr 6 A333 LTCS Pipe Manufacturer in Dubai, ASME SA333 grade 6 Carbon Steel Pipes Price List in Sharjah, A333 Gr 6 LTCS Pipe Distributor in Dubai, A333 Gr 6 Welded Pipes in Jebel Ali, Low Temperature Carbon Steel A333 Gr 6 Pipe Supplier in Dubai, Gr 6 A333 LTCS Pipe Distributor in UAE

Low Temperature Carbon Steel A333 Gr 6 Pipe Specification

ASTM A333 GR. 6 Carbon Steel Pipes Standards	ASTM, ASME and API
Carbon Steel ASTM A333 Pipe Related Grades	A333 Grade 1, A333 Grade 3, A333 Grade 4, A333 Grade 6, A333 Grade 7, A333 Grade 8, A333 Grade 9, A333 Grade 10, A333 Grade 11 Seamless Pipes
ASTM A333 GR. 6 Carbon Steel Round Pipes Size	1/2” NB to 36” NB
Carbon Steel A333 GR.6 Seamless Pipes Thickness	3-12mm
ASTM A333 Grade 6 Pipes Schedules	SCH 40, SCH 80, SCH 160, SCH XS, SCH XXS, All Schedules
ASTM A333 Carbon Steel GR.6 Seamless Pipes Tolerance	Cold drawn pipe: +/-0.1mm Cold rolled pipe: +/-0.05mm
ASTM A333 Gr 6 Carbon Steel Pipe Craft	Cold rolled and Cold drawn

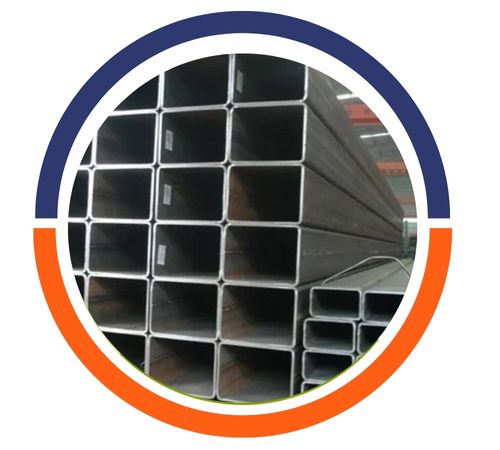

Carbon Steel A333 Gr.6 Rectangular Pipe Type	Seamless / ERW / Welded / Fabricated / CDW
ASTM A333 Gr.6 Carbon Steel Welded Pipes Form	Round, Hydraulic Etc
Carbon Steel A333 Gr.6 Square Pipe Length	Min 3 Meters, Max18 Meters, or according to customer’s requirement
ASTM A333 Grade 6 CS Pipes End	Plain End, Beveled End, Treaded
ASTM A333 GR. 6 Carbon Steel Welded Pipes Specialized in	Large Diameter ASTM A333 Grade 6 Pipe
ASTM A333 LSAW Pipes Additional Testing	NACE MR0175, NACE TM0177, NACE TM0284, HIC TEST, SSC TEST, H2 SERVICE, IBR, etc.

Low Temperature Carbon Steel A333 Gr 6 Pipe Chemical Composition

C(max)	Mn	P(max)	S(max)	Si	Ni
Grade 1	0.03	0.40 – 1.06	0.025	0.025
Grade 3	0.19	0.31 – 0.64	0.025	0.025	0.18 – 0.37	3.18 – 3.82
Grade 6	0.3	0.29 – 1.06	0.025	0.025	0.10 (min)

Low Temperature Carbon Steel A333 Gr 6 Pipe Mechanical Properties

ASTM A333 Grade 6
Minimum Yield	35,000 PSI
Minimum Tensile	60,000 PSI

Low Temperature Carbon Steel A333 Gr 6 Pipe Equivalent Grades

Former		New
Execution	Standard	Material	Standard	Material
Seamless	ASTM A333	GRADE 6	EN 10216-4	P265NL

If You Are Looking To Buy High Quality Pipes, Sheet, Fittings and Flanges

We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.

Low Temperature Carbon Steel A333 Gr 6 Pipe Pressure Rating

Size (in)	Outside Diameter (in)	Wall Thickness (in)	Inside Diameter (in)	Schedule	Temperature (oF)
					100	200	300	400	500	600	650	700
					Allowable Stress (psi)
					23300	21300	20700	20000	18900	17300	16900	16800
					Maximum Allowable Pressure (psi)
1/2	0.84	0.109	0.622	401)	6747	6168	5994	5792	5473	5010	4894	4865
	0.84	0.147	0.546	802)	9483	8669	8424	8140	7692	7041	6878	6837
	0.84	0.188	0.464	160	12704	11614	11287	10905	10305	9433	9215	9160
	0.84	0.294	0.252		22653	20708	20125	19444	18375	16819	16431	16333
3/4	1.05	0.113	0.824	40	5487	5016	4875	4710	4451	4074	3980	3957
	1.05	0.154	0.742	80	7743	7079	6879	6647	6281	5749	5616	5583
	1.05	0.219	0.612	160	11666	10665	10364	10014	9463	8662	8462	8412
	1.05	0.308	0.434		17861	16328	15868	15331	14488	13261	12955	12878
1	1.315	0.133	1.049	40	5128	4688	4556	4402	4160	3808	3720	3698
	1.315	0.179	0.957	80	7118	6507	6324	6110	5774	5285	5163	5133
	1.315	0.25	0.815	160	10448	9552	9283	8969	8475	7758	7578	7534
	1.315	0.358	0.599		16219	14827	14409	13922	13156	12042	11764	11694
1 1/4	1.66	0.14	1.38	40	4214	3853	3744	3618	3419	3129	3057	3039
	1.66	0.191	1.278	80	5905	5398	5246	5069	4790	4385	4283	4258
	1.66	0.25	1.16	160	7979	7295	7089	6849	6473	5925	5788	5753
	1.66	0.382	0.896		13143	12015	11677	11282	10661	9759	9533	9477
1 1/2	1.9	0.145	1.61	40	3788	3462	3365	3251	3072	2812	2747	2731
	1.9	0.2	1.5	80	5356	4897	4759	4598	4345	3977	3885	3862
	1.9	0.281	1.338	160	7817	7146	6944	6710	6341	5804	5670	5636
	1.9	0.4	1.1		11797	10785	10481	10127	9570	8759	8557	8506
2	2.375	0.109	2.157	10	2220	2030	1972	1906	1801	1648	1610	1601
	2.375	0.154	2.067	40	3187	2913	2831	2736	2585	2366	2312	2298
	2.375	0.218	1.939	80	4616	4220	4101	3963	3745	3428	3348	3329
	2.375	0.25	1.875		5356	4897	4759	4598	4345	3977	3885	3862
	2.375	0.281	1.813		6090	5567	5410	5227	4940	4522	4417	4391
	2.375	0.344	1.687	160	7634	6979	6782	6553	6193	5668	5537	5505
	2.375	0.436	1.503		10027	9167	8908	8607	8134	7445	7273	7230
2 1/2	2.875	0.12	2.635	10	2012	1840	1788	1727	1632	1494	1460	1451
	2.875	0.203	2.469	40	3487	3188	3098	2993	2829	2589	2529	2514
	2.875	0.216	2.443		3725	3405	3309	3197	3022	2766	2702	2686
	2.875	0.25	2.375		4355	3981	3869	3738	3533	3234	3159	3140
	2.875	0.276	2.323	80	4846	4430	4305	4159	3931	3598	3515	3494
	2.875	0.375	2.125	160	6786	6204	6029	5825	5505	5039	4922	4893
	2.875	0.552	1.771		10571	9664	9391	9074	8575	7849	7667	7622
3	3.5	0.12	3.26		1643	1502	1459	1410	1333	1220	1192	1184
	3.5	0.156	3.188		2154	1969	1913	1849	1747	1599	1562	1553
	3.5	0.172	3.156		2384	2179	2118	2046	1934	1770	1729	1719
	3.5	0.188	3.124		2615	2391	2324	2245	2122	1942	1897	1886
	3.5	0.216	3.068	40	3025	2766	2688	2597	2454	2246	2194	2181
	3.5	0.25	3		3530	3227	3136	3030	2864	2621	2561	2545
	3.5	0.281	2.938		3998	3655	3552	3432	3243	2969	2900	2883
	3.5	0.3	2.9	80	4288	3920	3810	3681	3479	3184	3110	3092
	3.5	0.438	2.624	160	6480	5924	5757	5563	5257	4812	4700	4673
	3.5	0.6	2.3		9258	8464	8225	7947	7510	6874	6715	6675
3 1/2	4	0.12	3.76	10	1432	1309	1273	1230	1162	1064	1039	1033
	4	0.226	3.548	140	2758	2521	2450	2367	2237	2047	2000	1988
	4	0.25	3.5		3066	2803	2724	2632	2487	2276	2224	2211
	4	0.281	3.438		3469	3171	3082	2977	2814	2575	2516	2501
	4	0.318	3.364	80	3956	3617	3515	3396	3209	2938	2870	2853
	4	0.636	2..728		8489	7761	7542	7287	6886	6303	6157	6121
4	4.5	0.12	4.26	10	1270	1161	1128	1090	1030	943	921	916
	4.5	0.156	4.188		1662	1519	1476	1426	1348	1234	1205	1198
	4.5	0.188	4.124		2014	1841	1789	1729	1634	1495	1461	1452
	4.5	0.203	4.094		2181	1994	1938	1872	1769	1619	1582	1572
	4.5	0.219	4.062		2360	2157	2096	2026	1914	1752	1712	1701
	4.5	0.237	4.026	40	2562	2342	2276	2199	2078	1902	1858	1847
	4.5	0.25	4		2709	2477	2407	2326	2198	2012	1965	1953
	4.5	0.281	3.938	60	3063	2800	2721	2629	2485	2274	2222	2208
	4.5	0.312	3.876		3421	3127	3039	2936	2775	2540	2481	2466
	4.5	0.337	3.826	80	3712	3394	3298	3186	3011	2756	2693	2677
	4.5	0.438	3.624	120	4919	4497	4370	4222	3990	3652	3568	3547
	4.5	0.531	3.438	160	6072	5551	5394	5212	4925	4508	4404	4378
	4.5	0.674	3.152		7930	7249	7045	6807	6432	5888	5752	5718
5	5.563	0.188	5.187		1619	1480	1438	1389	1313	1202	1174	1167
	5.563	0.219	5.125		1894	1732	1683	1626	1536	1406	1374	1366
	5.563	0.258	5.047	40	2244	2052	1994	1927	1821	1667	1628	1618
	5.563	0.281	5.001		2453	2242	2179	2106	1990	1821	1779	1769
	5.563	0.312	4.939		2736	2501	2431	2349	2220	2032	1985	1973
	5.563	0.344	4.875		3032	2771	2693	2602	2459	2251	2199	2186
	5.563	0.375	4.813	80	3320	3035	2950	2850	2693	2465	2408	2394
	5.563	0.5	4.563	120	4513	4126	4009	3874	3661	3351	3273	3254
	5.563	0.625	4.313	160	5753	5259	5111	4938	4666	4271	4172	4148
	5.563	0.75	4.063		7042	6438	6256	6045	5712	5229	5108	5078

Top Manufacturer and Supplier of Low Temperature Carbon Steel A333 Gr 6 Pipe in Dubai, UAE

Bhavesh Steel is a leading supplier of high-quality Low Temperature Carbon Steel A333 Gr 6 Pipe products in Dubai, UAE. We focus on steel solutions and offer a variety of products. This includes Carbon Steel, Alloy Steel, Mild Steel, and Galvanized Steel. Our products are Pipes, Tubes, Flanges, Pipe Fittings, Forged Fittings, Sheets, and Plates. We are known for our good delivery and excellent customer care. We aim to provide strong and durable steel materials for many industrial uses. We work hard to meet high standards, making us a trusted partner for your steel needs.

Gr 6 A333 LTCS Pipe Exporter in UAE, ASTM A333 Gr 6 Low Temperature Carbon Steel Pipe Price List in Dubai, LTCS ASTM A333 Gr 6 Schedule 60 Pipes Supplier in Ajman, LTCS ASTM A333 Gr 6 Schedule Pipes Exporter in Dubai, A333 Gr 6 Welded Pipes Exporter in Dubai, Low Temperature Carbon Steel A333 Gr 6 Pipe Size Chart, A333 LTCS Gr 6 Pipe Price in Jebel Ali, ASTM A333 Grade 6 Carbon Steel Pipe Weight Chart,, Gr 6 Low Temperature Carbon Steel Pipe Supplier in Sharjah, Grade 6 Low Temperature Carbon Steel Pipes Stockist in Ajman

Types of Low Temperature Carbon Steel A333 Gr 6 Pipe

Grade 6 Low Temperature Carbon Steel Supplier in Dubai, A333 LTCS Gr 6 Pipe Exporter in Ajman, LTCS ASTM A333 Gr 6 Pipes Manufacturer in Dubai, ASTM A333 Grade 6 Carbon Steel Pipe Price List in Sharjah, A333 Gr 6 Welded Pipes Sizes in mm, ASTM A333 Gr 6 Low Temperature Carbon Steel Pipe Distributor in Dubai, A333 Gr 6 Low Temperature Carbon Steel Pipe in Jebel Ali, Gr 6 A333 LTCS Pipe Supplier in Dubai, Grade 6 A333 LTCS Pipe Distributor in UAE

Uses of Low Temperature Carbon Steel A333 Gr 6 Pipe

ASTM A333 Grade 6 low-temperature carbon steel pipes are used extensively in industries where materials are subjected to sub-zero temperature conditions. Uses range from heat exchangers, condensers, and piping systems in the oil and gas industry, more so in offshore drilling and LNG plants. The pipes are also used in power generation, petrochemical, and chemical processing industries with a view to safe and efficient operation in cryogenic conditions.
