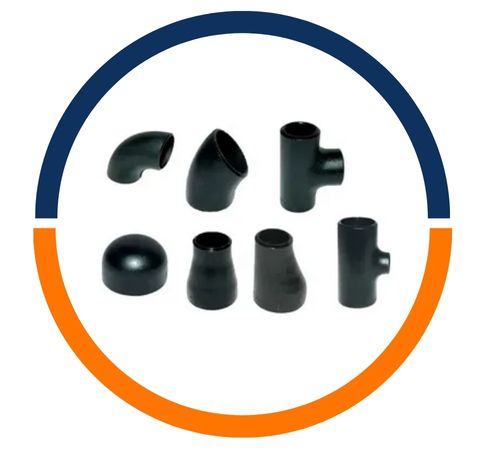

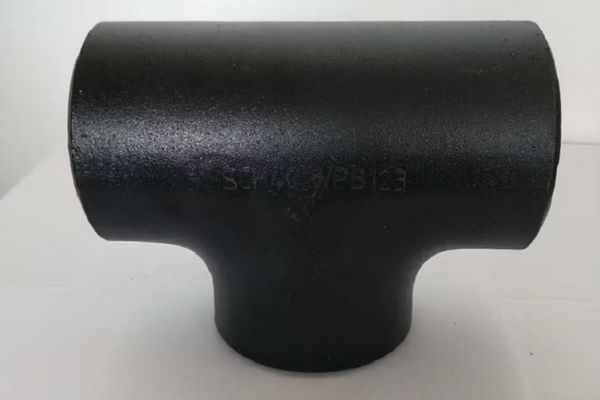

Providing dependable and long-lasting piping solutions to vital industries, Bhavesh Steel is a well-known manufacturer and supplier of Low Temperature Carbon Steel A420 WPL8 Pipe Fittings in Dubai, United Arab Emirates. Our A420 WPL8 fittings are designed to function exceptionally well in cryogenic and extremely cold temperatures. These fittings, which are made in accordance with ASTM standards, guarantee exceptional toughness, pressure resistance, and weldability. Bhavesh Steel offers both standard and customised fittings that satisfy the exacting requirements of industries like power generation, petrochemicals, LNG, and oil and gas, both domestically and abroad, thanks to its sophisticated production capabilities and unwavering commitment to quality.
Low-temperature carbon steel with a refined chemical composition—low carbon content and higher levels of manganese and nickel to improve impact strength and toughness—is used to make A420 WPL8 Pipe Fittings. These fittings have outstanding mechanical qualities, including a tensile strength between 485 and 620 MPa and a minimum yield strength of 275 MPa. Because they are made for low-temperature use, they are put through impact testing at -50°F (-45°C), which guarantees dependable operation in extremely cold temperatures. Because of its exceptional ductility, weldability, and fracture resistance, the material is perfect for demanding operating environments.
Specifications : ASTM A420 / ASME SA420
Dimensions : ASME/ANSI B16.9, ASME B16.28, MSS-SP-43
Size : 1/8” NB TO 48” NB. (Seamless & 100% X-Ray Welded, Fabricated)
Type : Seamless / Welded / Fabricated
Bending Radius : R=1D, 2D, 3D, 5D, 6D, 8D, 10D or Custom
Grades : A420 WPL3 / A420 WPL8
Thickness : Sch 5s, Sch 10s, Sch 40s, Sch 80s, Sch 160s, Sch XXS
| Chemical Composition of ASTM A420 | ||||
|---|---|---|---|---|
| Elements | WPL6, % | WPL9, % | WPL3, % | WPL8, % |
| Carbon [C] | ≤0.30 | ≤0.20 | ≤0.20 | ≤0.13 |
| Manganese [Mn] | 0.50-1.35 | 0.40-1.06 | 0.31-0.64 | ≤0.90 |
| Phosphorus [P] | ≤0.035 | ≤0.030 | ≤0.05 | ≤0.030 |
| Sulfur [S] | ≤0.040 | ≤0.030 | ≤0.05 | ≤0.030 |
| Silicon [Si] | 0.15-0.40 | … | 0.13-0.37 | 0.13-0.37 |
| Nickel [Ni] | ≤0.40 | 1.60-2.24 | 3.2-3.8 | 8.4-9.6 |
| Chromium [Cr] | ≤0.30 | … | … | … |
| Molybdenum [Mo] | ≤0.12 | … | … | … |
| Copper [Cu] | ≤0.40 | 0.75-1.25 | … | … |
| Columbium [Cb] | ≤0.02 | … | … | … |
| Vanadium[V] | ≤0.08 | … | … | … |
| ASTM A420/ A420M | Tensile Strength, min. | Yield Strength, min. | Elongation %, min | |||
|---|---|---|---|---|---|---|
| Grade | ksi | MPa | ksi | MPa | Longitudinal | Transverse |
| WPL6 | 65-95 | 415-655 | 35 | 240 | 22 | 12 |
| WPL9 | 63-88 | 435-610 | 46 | 315 | 20 | … |
| WPL3 | 65-90 | 450-620 | 35 | 240 | 22 | 14 |
| WPL8 | 100-125 | 690-865 | 75 | 515 | 16 | … |
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
Bhavesh Steel is a top manufacturer and supplier of high-quality Low Temperature Carbon Steel A420 WPL8 Pipe Fittings products in Dubai, UAE. Specializing in steel solutions, we provide a wide range of products, including Carbon Steel, Alloy Steel, Mild Steel and Galvanized Steel. Our offerings include Pipes, Tubes, Flanges, Pipe Fittings, Forged Fittings, Sheets and Plates. Known for our reliable delivery and superior customer service, we are committed to offering top-tier steel materials that ensure durability and performance across a wide range of industrial applications. We strive to meet the highest standards, making us a trusted partner for all your steel needs.
Industries that work in cryogenic and sub-zero environments frequently use low temperature carbon steel A420 WPL8 pipe fittings. Cold storage systems, gas processing facilities, offshore drilling platforms, and LNG plants are important applications. In the transportation of cryogenic fluids, liquefied natural gas, and other low-temperature media, where structural integrity and leak-proof performance are crucial, these fittings are indispensable. They are also used in power plants, chemical plants, and refrigeration systems. A420 WPL8 fittings, which are well-known for their exceptional durability, resistance to corrosion, and extended service life, guarantee efficiency and safety in demanding settings that call for dependable piping connections.
