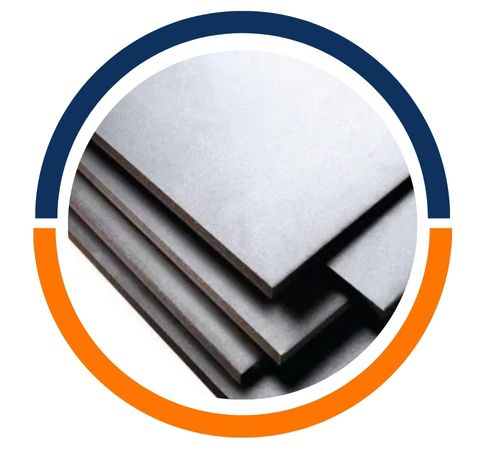

Reliable steel solutions for structural and engineering applications are provided by Bhavesh Steel, a reputable manufacturer and supplier of premium S315MC Sheets and Plates in Dubai, United Arab Emirates. S315MC plates, which satisfy the EN 10149-2 standard for thermomechanically rolled steels, are well-known for their high yield strength and superior cold-forming capabilities. Bhavesh Steel provides fast delivery and adherence to global quality standards to a range of industries, including fabrication, construction, and the automotive sector. S315MC plates that deliver strength, consistency, and performance across demanding industrial operations are offered by us with a dedication to technical excellence and customer satisfaction.
Carbon (≤ 0.12%), manganese (≤ 1.60%), phosphorus, sulphur, and trace amounts of niobium, titanium, and vanadium are all present in S315MC Sheets and Plates, which are micro-alloyed steels. Grain refinement and strength are enhanced by these components. The material has a tensile strength of 390–510 MPa and a minimum yield strength of 315 MPa. Because of its low carbon equivalent, S315MC has good weldability and excellent cold-forming capabilities. Its structural qualities are improved by thermomechanical rolling, which makes it perfect for high-load and weight-sensitive applications requiring accuracy and longevity.
| Steel grade type | Carbon steel: |
|---|---|
| Standard | |
| Production specifications | Steel plate,Sheet, Coil,Flat bar,Round bar, Strip steel,wire,All kinds of forgings. |
| Mchining | Turning Milling Grinding Deep hole drilling: length max 9.8 meters. |
| Range of work | Round bar steel: 1mm to 2000mm Square-shape steel: 10mm to 1000mm steel Plate/sheet:0.08mm to 800mm Width: 10mm to 1500mm Lenth: We can supply any lenth based on the customer’s requirement. Forging: Shafts with flanks/pipes/tubes/slugs/donuts/cubes/other shapes Tubings: OD: φ4-410 mm, with wall thickness ranging from 1-35 mm. |
| Heat treatment | Normalizing,Annealing,Tempering,Quenching,Hardening and tempering,Seasoning,Surface hardening,Carburizing |
| Grade | C | Si | Mn | P | S | Altotal | Mo | Ti | B |
| EN 10149-2 S315MC | 0,12 max | 0,50 max | 1,30 max | 0,025max | 0,020 | 0,015 | – | 0,15 | – |
| Grade | Mechanical properties 　 | Yield Strength ReH [N/mm2] t ransv.min. | Tensile Strength Rm [N/mm2] transv. | Min.totalel ongation [%] | Smallest recom mended bending radius bending angles ≤ 90 | |||
| EN 10149-2 S315MC | 　 S315MC | 315 | 390 – 510 | L0 = 80 mm | L0= 5,65 √S0 | e1) ≤ 3 | 3 < e1)< 6 | e1) > 6 |
| e2) < 3 | e2) ≥ 3 | |||||||
| 20 | 24 | 0,25 e | 0,5 e | 1,0 e | ||||
| Grade | S315MC EN 10149-2 Material #: 1.0972 | Comparison of steel grades | |
| EN 10149-2 S315MC | NFA 36-231 | E 315 D | |
| BS 1449 | HR 43F35 | ||
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
| Quantity | Value | Unit |
|---|---|---|
| Thermal expansion | 16 – 17 | e-6/K |
| Thermal conductivity | 16 – 16 | W/m.K |
| Specific heat | 500 – 500 | J/kg.K |
| Melting temperature | 1370 – 1400 | °C |
| Service temperature | 0 – 500 | °C |
| Density | 8000 – 8000 | kg/m3 |
| Resistivity | 0.7 – 0.7 | Ohm.mm2/m |
Â
S315MC Applications needing high strength and good formability frequently use sheets and plates, particularly in structural and automotive engineering. They are perfect for producing parts like reinforcements, frames, beams, and chassis components. S315MC is utilised in the construction sector for load-bearing frameworks, bridges, and lightweight structures. It is appropriate for precision-formed parts in the transportation and machinery industries due to its cold-forming properties. These plates are also utilised in agricultural equipment, trailers, and containers where strength-to-weight efficiency is crucial. Reliability in both fabricated and structural applications is guaranteed by their exceptional weldability and steady mechanical performance.
