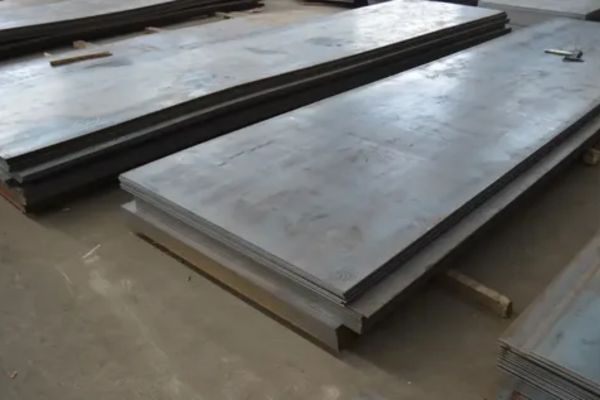

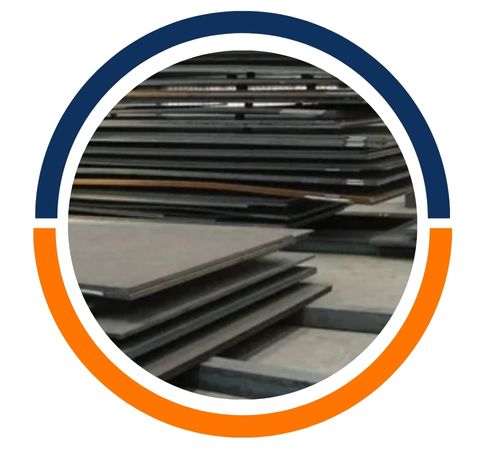

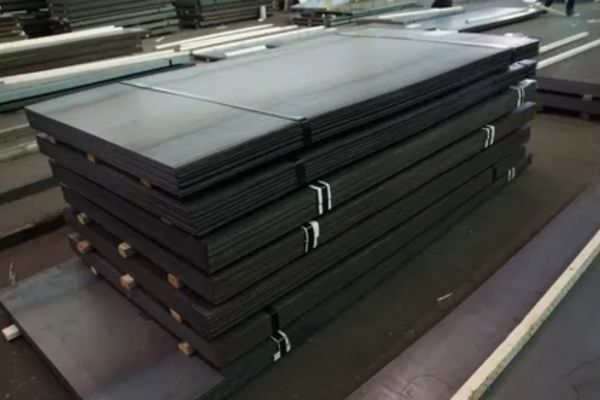

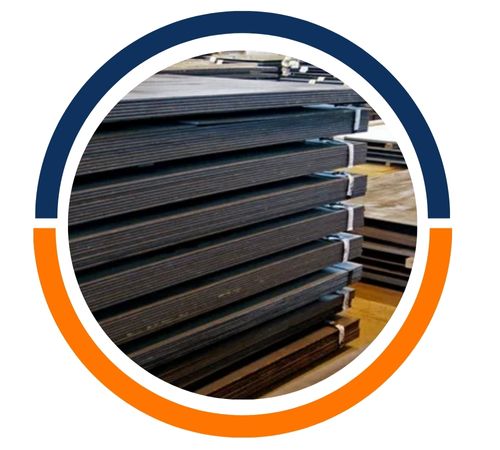

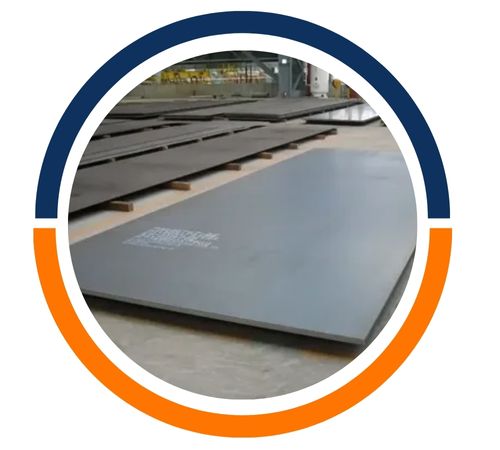

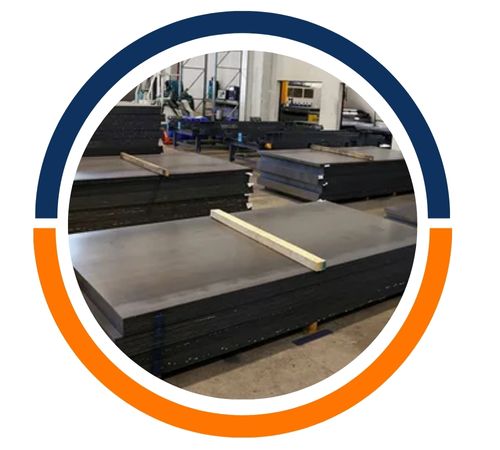

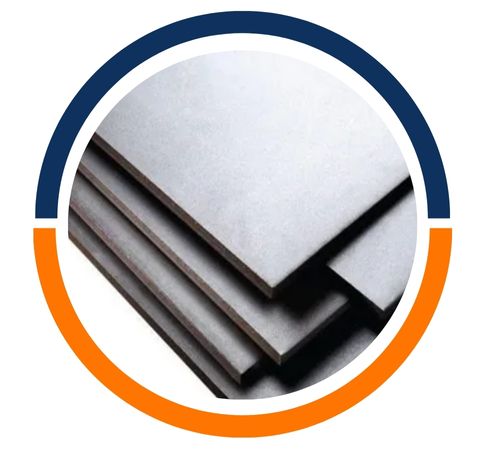

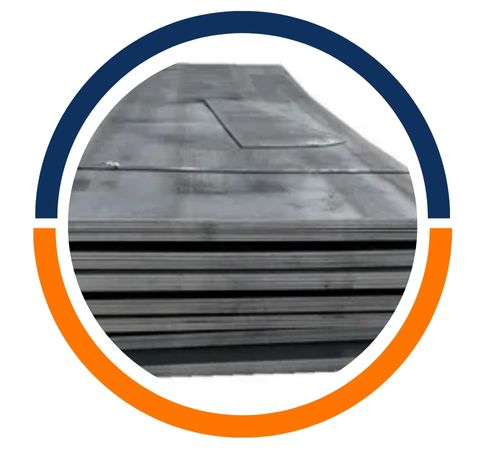

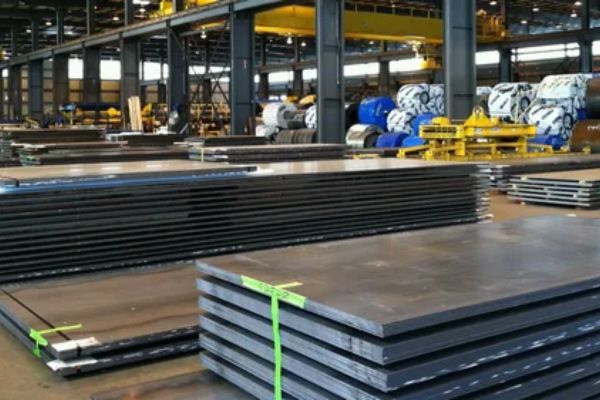

Bhavesh Steel has made a name for itself as a trusted manufacturer and supplier of top-notch steel products in Dubai, UAE. They specialize in solutions like the SA 516 GR.60/70N NACE plates, which are designed with a commitment to excellence. These steel plates are crafted to perform exceptionally well in tough environments, particularly those that face sour service conditions. Manufactured in line with NACE standards and international quality benchmarks, these plates are built to resist corrosion and hydrogen-induced cracking. Bhavesh Steel caters to various industries, including oil and gas, petrochemical, and power generation, ensuring timely deliveries, technical support, and dependable products for critical pressure vessel applications.
The SA 516 GR.60/70N NACE plates are carbon steel pressure vessel plates that offer enhanced resistance to corrosive environments and hydrogen-induced cracking. Their chemical makeup features up to 0.28% carbon, 0.79–1.30% manganese, along with controlled amounts of phosphorus and sulfur. These plates undergo a normalization process (N) to refine their grain structure and boost toughness. They provide a tensile strength ranging from 415 to 585 MPa and a minimum yield strength between 260 and 485 MPa, depending on the specific grade. Meeting NACE MR0175/ISO 15156 standards, these plates are well-suited for sour service applications in demanding environments.
| Grade | ASME SA 516 GR.60/70N Boiler Plates |
|---|---|
| Width | 1000mm-4500mm |
| Thickness | 5mm-150mm |
| Length | 3000mm-18000mm |
| Supply Condition | As Rolled, Normalized Rolling, Furnace Normalizing, Vacuum Degassing, Simulated Post-Weld Heat Treatment or as per customer requirement. |
| Impact tested | 52° C |
| Tempering | Notch toughness can be improved by quenched cooling from hot rolling or normalizing by the supplier. If such a faster cooling rate is agreed upon between purchaser and supplier then the steel is also to be tempered at 1200 F. |
| Applications | Used for weld fabrication of pressure vessels that require improved notch toughness for lower than ambient temperature service. |
| Process of Manufacturing | Hot-Rolled (HR) |
| C | Si | Mn | P | S | Al | Cr | Cu | Ni | Mo | Nb | Ti | V |
| 0.20 | 0.4 | 0.95/1.50 | 0.025 | 0.025 | 0.02 | 0.3 | 0.3 | 0.3 | 0.08 | 0.01 | 0.03 | 0.02 |
| 0.18 | 0.4 | 0.95/1.50 | 0.015 | 0.008 | 0.02 (Min) | 0.3 | 0.3 | 0.3 | 0.08 | 0.01 | 0.03 | 0.02 |
| Tensile strength | Yield strength | Elongation min, % 200 mm (8 in) | Elongation min, % 50 mm (2 in) |
| 415-550 MPa | 250 MPa | 21 | 25 |
| 485-620 (70-90) | 260 (38) | 17 | 21 |
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
| British Standard | European Norm | ASTM/ASME | DIN |
| BS1501-161-430A | EN10028 P265GH | A/SA516 – Grade 60 | DIN 17155 HII |
| BS1501-224-490A/B | EN10028 P355GH | A/SA516 – Grade 70 | – |
Jaxon Steel is a trusted manufacturer and supplier of high-quality SA 516 GR.60/70N NACE Plates​ in Dubai, UAE. We specialize in premium steel products, including Alloy Steel, Carbon Steel, Mild Steel and Galvanized Steel, with a strong focus on Carbon Steel Sheet and Plates. Our extensive inventory also includes Pipes, Tubes, Flanges, Forged Fittings and Bars. Committed to fast delivery and exceptional customer service, we use only the finest raw materials to ensure superior strength, durability and performance for critical industrial applications. Contact us today for all your SA 516 GR.60/70N NACE Plates​ needs!
SA 516 GR.60/70N NACE plates are commonly utilized in industries that need materials capable of enduring sour gas environments and high-pressure situations. Typical uses include pressure vessels, heat exchangers, separators, boilers, and storage tanks in oil and gas refineries, petrochemical facilities, and offshore platforms. Their outstanding resistance to hydrogen-induced cracking and corrosion makes them perfect for sour service applications. Plus, their excellent weldability, notch toughness, and durability in harsh conditions ensure long-lasting performance and safety, making them a go-to choice for high-risk and structurally demanding industrial projects.
