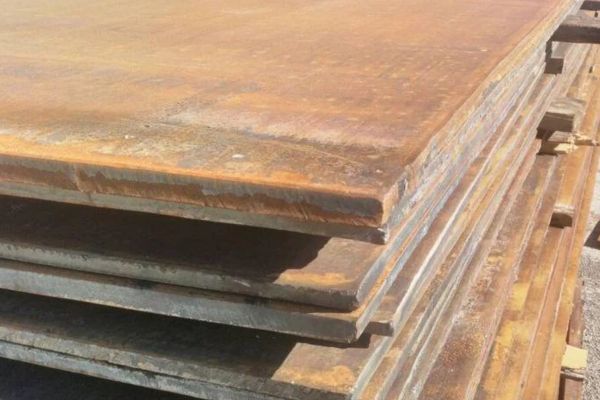

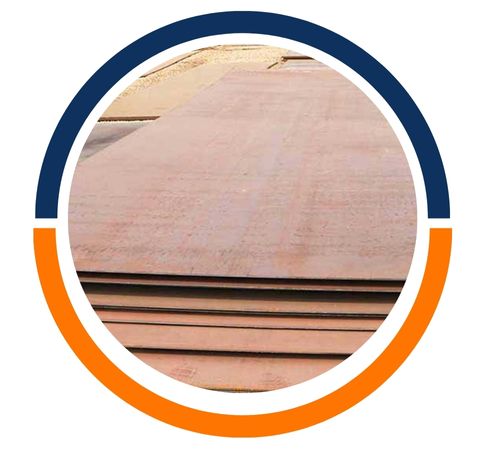

Bhavesh Steel is a leading manufacturer and supplier of weathering steel plates and sheets from Dubai, UAE. Dedicated to providing high-quality, corrosion-resistant steel material, Bhavesh Steel supplies various industries such as construction, infrastructure, and transport. Their weathering steel products are famous for creating a stable outer layer of rust that prevents further corrosion, making them free from painting and lowering maintenance expenditure. Bhavesh Steel’s commitment to quality and customer satisfaction has made them a reliable name in the UAE steel industry.
Weathering steel or COR-TEN steel refers to a series of steel alloys that develop a stable protective layer of rust when exposed to the atmosphere. This corrosion-resistant outer layer avoids further corrosion and does not require painting. Weathering steel has elements in its chemical composition such as copper, phosphorus, chromium, nickel, molybdenum, niobium, vanadium, and titanium that help in its improved corrosion resistance. Mechanical properties differ depending on the grade; for example, ASTM A242 has a 50 ksi yield strength and an ultimate tensile strength of 70 ksi for plates up to 0.75 inches thick. Such properties render weathering steel appropriate for uses where high strength and hardness are demanded.
| Thickness | Width | Length |
|---|---|---|
| 1/4 to 1/2 “ | 48 “ | 120″ |
| Grades | Application | Weldability |
| A & B | building facades to construct roofs | anual welding or submerged arc welding |
| Si % max. | C % max. | Mn % | Z% | S % max. | P % | N % max. | Cr % | V% | Cu % | Ni% | Mo% | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| According to EN 10027-1 & CR 10260 | ||||||||||||
| S235J2W | 0.40 | 0.13 | 0.20-0.60 | 0.03 | 0.04 | 0.40-0.80 | 0.25-0.55 | 0.65 | ||||
| S235J0W | 0.40 | 0.13 | 0.20-0.60 | 0.04 | 0.04 | 0.01 | 0.40-0.80 | 0.25-0.55 | 0.65 | |||
| S355J2WP | 0.75 | 0.12 | 1.00 | 0.03 | 0.06-0.15 | 0.30-1.25 | 0.25-0.55 | 0.65 | ||||
| S355J0W | 0.75 | 0.12 | 1.00 | 0.04 | 0.06-0.15 | 0.01 | 0.30-1.25 | 0.25-0.55 | 0.65 | |||
| S355J2W | 0.50 | 0.16 | 0.50-1.50 | 0.15 | 0.03 | 0.03 | 0.40-0.80 | 0.25-0.55 | 0.65 | 0.30 | ||
| S355J0W | 0.50 | 0.16 | 0.50-1.50 | 0.15 | 0.04 | 0.04 | 0.01 | 0.40-0.80 | 0.25-0.55 | 0.65 | 0.30 | |
| S355K2W | 0.50 | 0.16 | 0.50-1.50 | 0.15 | 0.03 | 0.03 | 0.40-0.80 | 0.25-0.55 | 0.65 | 0.30 | ||
| Tensile Strength | Min. Yield Point | Elongation | |
|---|---|---|---|
| COR-TEN A | [470 – 630 MPa] | [355 MPa] | 20 % min |
| ASTM 588 GR. A | [485 MPa] | [345 MPa] | 21% min |
| ASTM 242 TYPE -1 | [480 MPa] | [345 MPa] | 16% min |
| Element | Weathering Steel B | Weathering Steel A |
|---|---|---|
| Tensile strength Rm MPa | 485 | 485 |
| Minimum yield point ReH Mpa *) | 345 | 345 |
| Minimum elongation A (Lo=5.65 vSo) % | 19 | 20 |
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
Bhavesh Steel is one of the most prominent manufacturers and suppliers of superior quality Weathering Steel Sheet and Plate in Dubai, UAE. As experts in steel solutions, we supply a complete spectrum of products like Carbon Steel, Alloy Steel, Mild Steel, and Galvanized Steel. Our product range comprises Pipes, Tubes, Flanges, Pipe Fittings, Forged Fittings, Sheets, and Plates. Known for our reliable delivery and first-rate customer service, we are committed to supplying high-quality steel materials that guarantee durability and excellent performance in numerous industrial applications.
| Thickness | Length | Width | Weight (lbs/ft) |
|---|---|---|---|
| 1/2″ | 120.00″ | 48.00″ | 20.420 |
| 1/4″ | 120.00″ | 60.00″ | 10.210 |
| 1/4″ | 120.00″ | 48.00″ | 10.210 |
| 3/8″ | 120.00″ | 48.00″ | 15.315 |
| Thickness | Weight / Ft. |
|---|---|
| 1/4 | 10.21 lb |
| 3/16 | 7.66 lb |
| 1/2 | 20.42 lb |
| 3/8 | 15.31 lb |
| 1 | 40.84 lb |
| 3/4 | 30.63 lb |
| 1-1/2 | 61.26 lb |
Weathering steel plates and sheets find numerous uses based on their better corrosion properties and attractive outlook. In building construction, they are utilized for bridges, facades, and structural elements, lowering maintenance requirements and increasing lifespan. The transport sector uses weathering steel in the production of railway vehicles, shipping containers, and cargo structures, providing long-lasting performance in extreme conditions. It is architecturally popular for sculpture, cladding, and landscaping details, providing a unique, aged look. Weathering steel is also used by industries like petrochemical and agriculture for tanks and machinery to be subjected to corrosive materials, taking advantage of its low maintenance and long lifespan.
