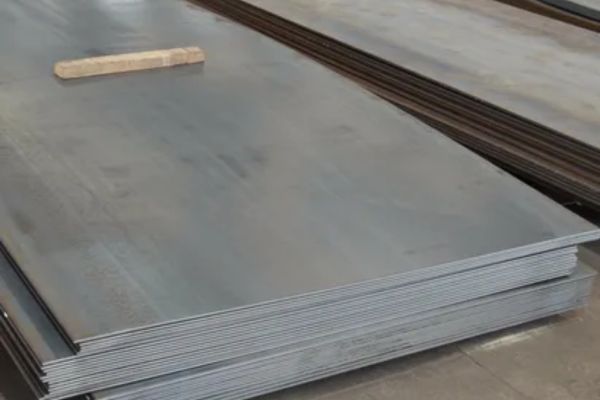

Bhavesh Steel is one of the leading manufacturers and suppliers of WELDOX 700E plates and sheets in Dubai, UAE. We are known for our quality and customer-centric approach, offering high-strength structural steel solutions suitable for different industrial requirements. WELDOX 700E plates and sheets are famous for their excellent weldability, high strength, and superior performance in extreme conditions. Supported by decades of industrial experience and state-of-the-art technology, Bhavesh Steel provides timely delivery and accurate specifications to respond to the changing requirements of construction, engineering, and heavy machinery industries in the UAE as well as overseas markets.
WELDOX 700E plates and sheets are high-strength structural steels having a well-balanced chemical composition usually consisting of carbon, manganese, silicon, chromium, and nickel. The materials exhibit good toughness and weldability. The mechanical properties consist of at least a 700 MPa minimum yield strength and excellent tensile strength for assured performance under high demands. The plates also have good low-temperature impact resistance, which makes them suitable for operation in extreme environments. With uniform surface finish and close dimensional tolerance, WELDOX 700E provides maximum strength-to-weight ratio efficiency for structural and load-carrying applications.
Grade : 700E
Item : WELDOX 700E Sheets and plates
Thickness : 5 – 160mm, 6 – 60mm, 5 – 160mm
Width : 1000mm-4500mm
Length : 3000mm -18000mm
| C | Si | Mn | P | S | Cu | Ni | Cr | Mo | B |
| 0.20 max % | 0.60 max % | 1.60 max % | 0.020 max % | 0.010 max % | 0.30 max % | 2.0 max % | 0.70 max % | 0.70 max % | 0.005 max % |
| Thickness mm | Yield strength Rp 0.2, min MPa | Tensile strength RmMPa | Elongation A5 min % | Typical hardness HBW |
| 4 – 53 | 700 | 780 – 930 | 14 | 260 – 310 |
| (53) – 100 | 650 | 780 – 930 | 14 | 260 – 310 |
| (100) – 160 | 650 | 710 – 900 | 14 | 240 – 290 |
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
WELDOX 700E plate and sheet find extensive applications in industries that necessitate high strength of structure and less weight. Typical uses are bridge construction, high-rise building construction, cranes, and heavy lorries. They are also vital in the production of mining machines, offshore platforms, and wind towers, where strength, ductility, and fatigue life are imperative. Because of their high weldability and machinability, these plates are selected for fabricated structural pieces and load-bearing structures. Bhavesh Steel‘s WELDOX 700E products provide engineers and designers with the reliability and performance required for sophisticated, high-stress applications in a wide range of industrial industries.
Bhavesh Steel is a leading manufacturer, supplier and exporter of high-quality Carbon Steel, Alloy Steel, Mild Steel and Galvanized Steel products. Our extensive product range includes Pipes, Tubes, Flanges, Pipe Fittings, Forged Fittings, Sheets and Plates, catering to various industries in Dubai, UAE.
